Summary

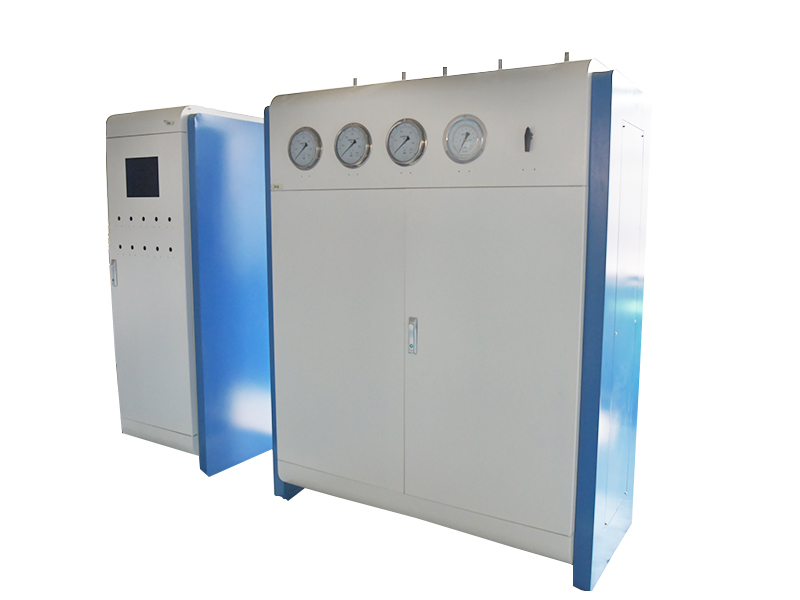

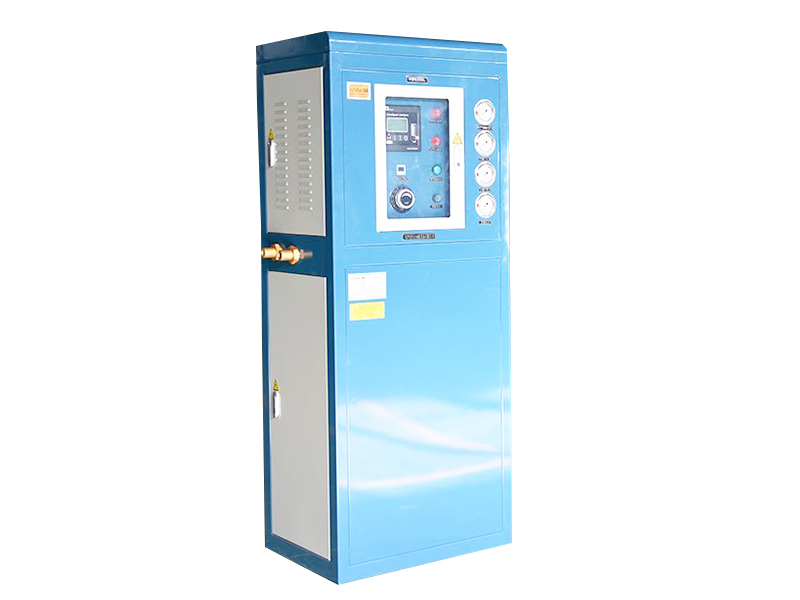

The mixed gas proportioning cabinet is that the gas to be mixed enters a two-stage or multistage pressure balancing device through a one-way valve to balance its input differential pressure, so as to ensure that the pressure of the component gas and the dilution gas is the same before mixing, and then adjust the flow control valve to adjust the flow of various gases according to the desired mixed gas ratio.
The principle of this series of products is to use dynamic gas mixing method, which ensures the uniformity of the mixed gas, excellent reproducibility, and stable proportion. It has an input undervoltage alarm function. When the input pressure of any gas is lower than the set lower pressure limit, it will sound and light dual alarms, while cutting off the output of the mixed gas, ensuring the accuracy of the mixed gas. The output is controlled by a digital pressure sensor, which makes the output flow more accurate and stable. Online, it can be used for welding mixture, electronic industry mixture, electric light source mixture, leak detection (alarm) mixture, disinfection mixture, etc.
The commonly used types of mixed gases include 0-50% carbon dioxide, other argon, 0-50% argon, other helium, 0-50% carbon dioxide, other nitrogen, 0-50% argon, other nitrogen, 0-2% oxygen, other argon, 0-10% hydrogen, other argon, 0-20% oxygen, other argon, 0-5% oxygen, 0-15% carbon dioxide, other argon, 0.5% oxygen, 26.5% helium, 8% carbon dioxide, other argon, 0.5% oxygen, 26.5% nitrogen, 8% carbon dioxide, and other argon
The mixed gas can reach -6 types, with a maximum input pressure of ≤ 3MPa, a maximum output flow rate of 15Nm3/h to 500Nm3/h, an output pressure of 0.1-2.5MPa, and a ratio accuracy of ± 0.05%, ± 0.5%, ± 1.5%, ± 2.5%, ± 3%.

Structural characteristics

1. The rated voltage is 36V/110V/220V;
2. Provide high flow rate, high-precision binary gas or multi-component mixture ratio;
3. The output pressure adjustment adopts a digital display switch, which is easy to adjust and has high accuracy. The inlet pressure and outlet pressure can be set within the alarm range;
4. The output end is equipped with a gas buffer tank to make the welding gas more stable;
5. The fully enclosed metal shell has strong anti-interference ability, and the proportioning mechanism is a pure mechanical component. All electrical components are made of well-known manufacturer's products, ensuring safe and reliable use;

Performance characteristics

1. Adopting dynamic gas mixing method, it has the characteristic of mixing and using immediately, making gas mixing more uniform and fast;
2. The gas distribution process is intuitive and easy to adjust;
3. For pure machine structure, long service life, safe and reliable;
4. Compact in size, lightweight, easy to carry and use;
5. High gas mixing accuracy, up to ± 0.05%;
6. Can achieve synchronous mixing of binary or multicomponent gases;
7. The reproducibility of the mixing process is excellent, and the proportion is stable;
