Product Description

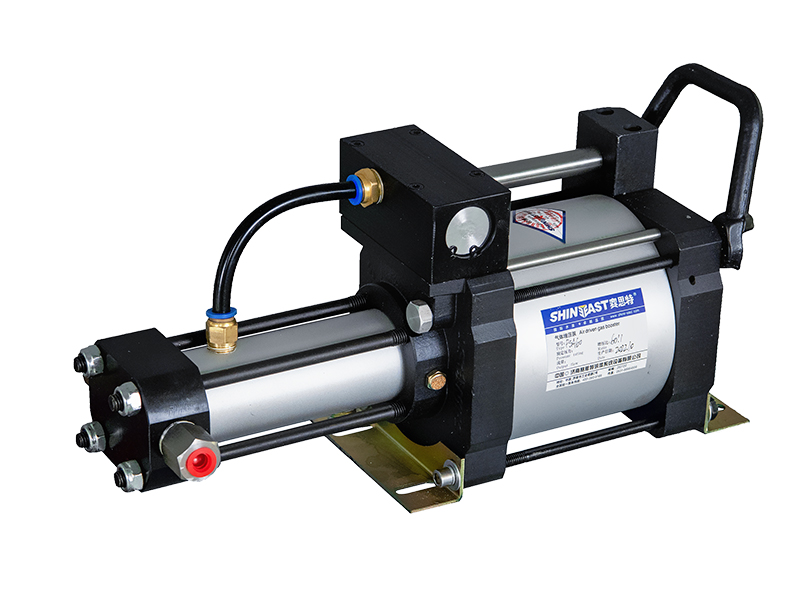

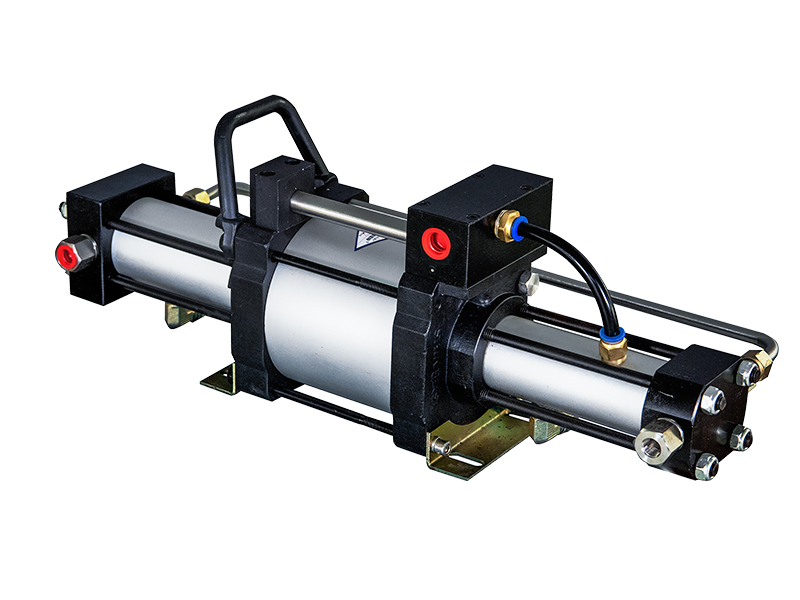

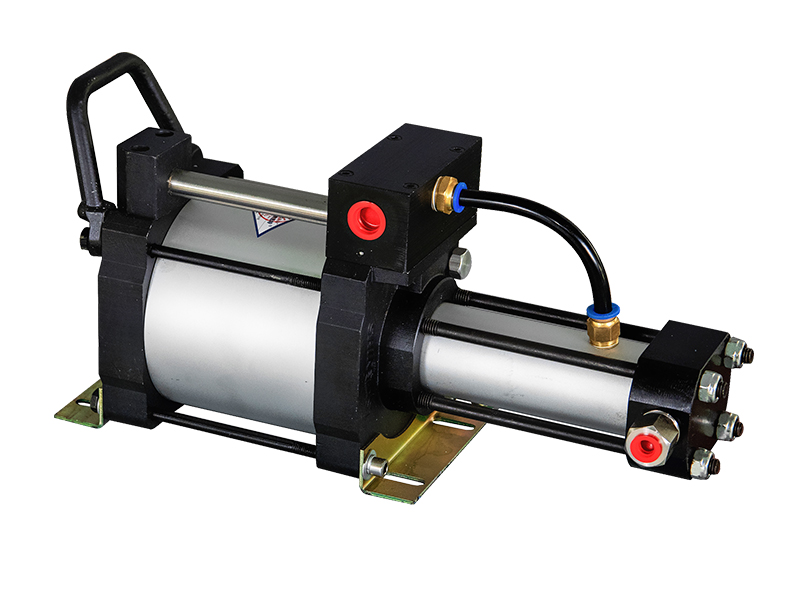

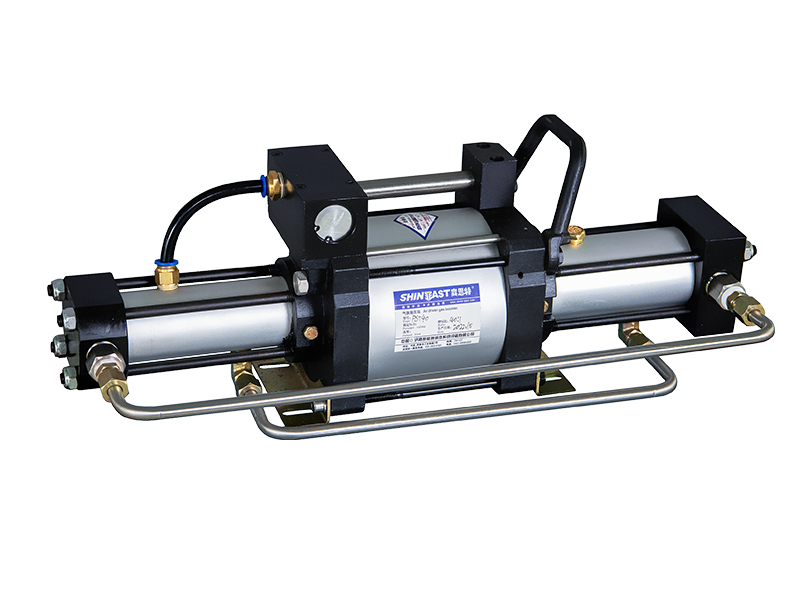

PSD series pumps are double acting, single stage models with single air drive head, with diameter of drive plunger 125mm.


Air drive pressure is from 1 bar (14.5 psi) to 8 bar (145 psi).


Technical Parameters of PSD Series Gas Boosters:

TypePressureratioMin. gas inlet pressurePA(barMax.   gasInletpressurePA(bar)Max.gasoutletpressurePB(bar)Formula tocalculate gasoutlet pressurePBConnection:Gas Inlet /Gas outlet(NPT thread)Max. flow at air drive pressureof 6 bar (L/min)
PSD1515:16.812012015PL+PA1/4/1/4372(at PA of 20 bar )
PSD2525:112.520020025PL+PA1/4/1/491(at PA of 20 bar )
PSD4040:118.532032040PL+PA1/4/1/455(at PA of 20 bar )
PSD6060:13148048060PL+PA1/4/1/468(at PA of 40 bar )


Note:  PL: air drive pressure    PA: gas inlet pressure   PB: gas outlet pressure


Company Profile

Shandong Shineeast Fluid Control Systems Co., Ltd., founded in 2001, is a professional manufacturer of highly engineered fluid and gas handling equipment designed to generate, store and control high pressure gases and liquids.


In addition to offering a comprehensive range of air driven liquid pumps, air pressure boosters, air driven gas boosters, high pressure valves, fittings and accessories, pnematic power packs and hydraulic presses, pressure test machines, valve and pipe fittings test equipments, finishing pumps and related equipments, gas cylinder test equipments and the oil and gas field special controls and test equipments, we customize and build pneumatic power packs and test equipment. Our main manufacturing locations are fully registered to ISO9001 and CE.
