Summary
This device is a detection device for tank accessories (breathing valve, flame arrester, hydraulic safety valve), and is an operating platform for detecting whether tank accessories are qualified. This device can be used to detect accessories of storage tanks with diameters ranging from DN50 to DN250 and DN50 to DN350. The main parameters for detection include opening pressure, ventilation rate, operating pressure, and pressure difference.
According to standard: Q/TMLYB09-2021 Mobile Petroleum Tank Attachment Inspection Device
Technical Specification: Q/SY 08007-2017 Technical Specification for Inspection of Petroleum Tank Accessories

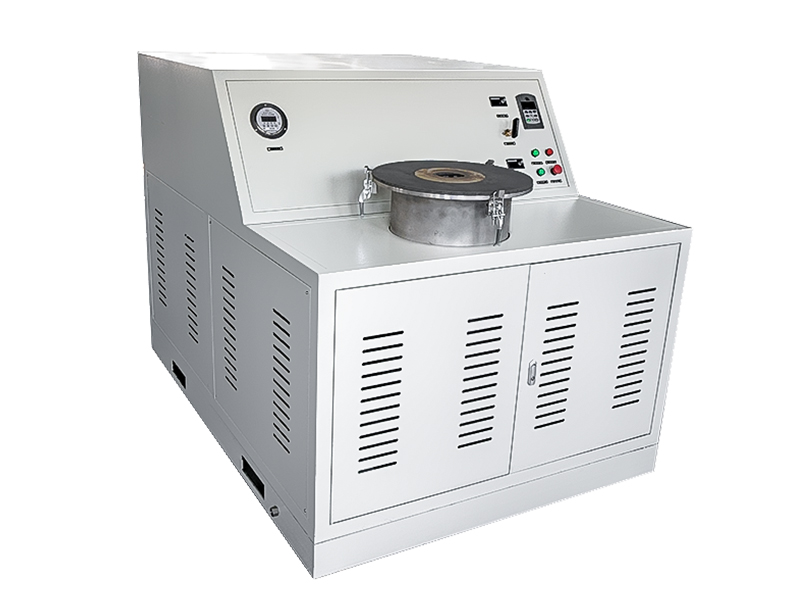

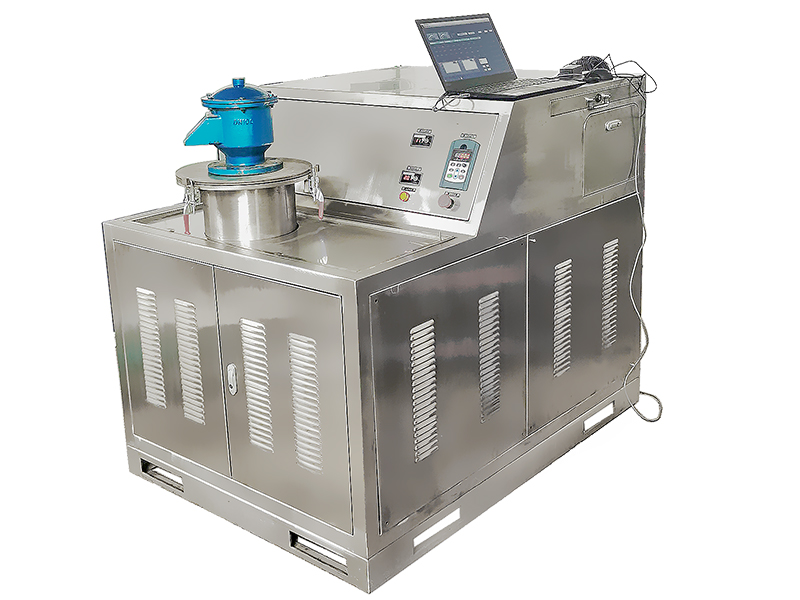

The structure of this device is shown in the diagram, mainly composed of the power system, guidance system, control system, detection platform, etc. provided by the air source fan.
Main technical parameters
DN250 external dimensions: 1070 * 1480 * 1200mm (length * width * height)
DN350 external dimensions: 1400 * 1900 * 1400mm (length * width * height)
Test DN250 power supply voltage: single-phase AC220V
Test DN350 power supply voltage: three-phase 380V
● Detection accessory diameter range: DN50~DN350mm
Flow measurement accuracy: 1.0 level
DN250 flow measurement range: 50-2800Nm3/h (positive pressure) 50-2000Nm3/h (negative pressure)
DN350 flow measurement range: 50-5400Nm3/h (positive pressure) 50-3000Nm3/h (negative pressure)
Pressure measurement accuracy: 0.065 level
Pressure measurement range: ± 5kPa
DN250 maximum power: 9KW
DN350 maximum power: 19KW
Flow adjustment resolution: 0.2%
DN250 Weight: 500Kg
DN350 Weight: 800Kg
