Testing equipment shall refer to relevant national standards

GB24162-2009 Periodic Inspection and Evaluation of Compressed Natural Gas Cylinders with Metal Liner and Filament Ring Winding for Automobile

GB7144 Gas Cylinder Color Mark

GB8335 Special Threads for Gas Cylinders

GB/T8336 Special Thread Gauges for Gas Cylinders

GB/T925 Hydrostatic Test Method for Gas Cylinders

GB12135 Technical Conditions for Periodic Gas Cylinder Inspection Station GB/T12137 Test Method for Gas Cylinder Tightness

GBI5382 General Specification for Gas Cylinder Valves

GBI7258 Compressed Natural Gas Cylinder for Automobile

GB17,926 Compressed Natural Gas Cylinder Valves for Vehicles

GB19533 Periodic Inspection and Evaluation of Compressed Natural Gas Cylinders for Automobiles

JB4730-94 Nondestructive Testing of Pressure Vessels

TSGZ700 Standard Rules for Inspection and Testing Institutions of Special Equipment TSGR0009-2009 Regulations on Safety Supervision of Gas Cylinders issued by the State Administration of Quality and Technology Supervision on April 24, 2003 No. 46

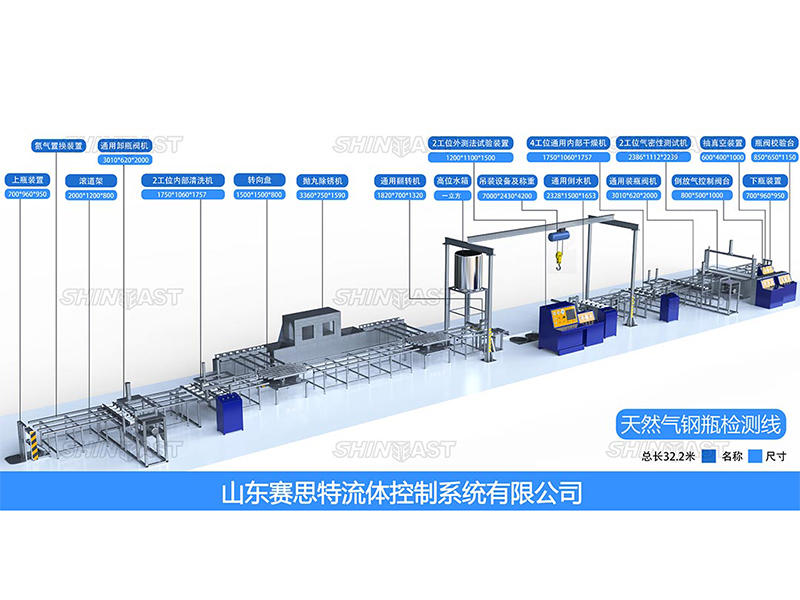

Test range:

The test line is applicable to the regular inspection and evaluation of compressed natural gas cylinders, steel lined circumferential wound cylinders of different types and specifications, with the nominal working pressure of 16-25MPa and the nominal volume of 30-230L.

1. Technical parameters of natural gas cylinder:

① Outer diameter of gas cylinder: φ 219-φ426mm

② Cylinder length: 600-2000mm

③ 3 Weight of gas cylinder: ≤ 160Kg



2. Cylinder shape: form A (bottom closing), form B (concave bottom)

Performance:

1. Meet the annual inspection of gas cylinders for vehicles.

2. It is suitable for the comprehensive online inspection of gas cylinders of different specifications, and meets the requirements of relevant national regulations and standards for the inspection of natural gas cylinders.

3. The test line has a certain automatic operation ability to realize flow process, greatly improve the test efficiency and ensure the test quality

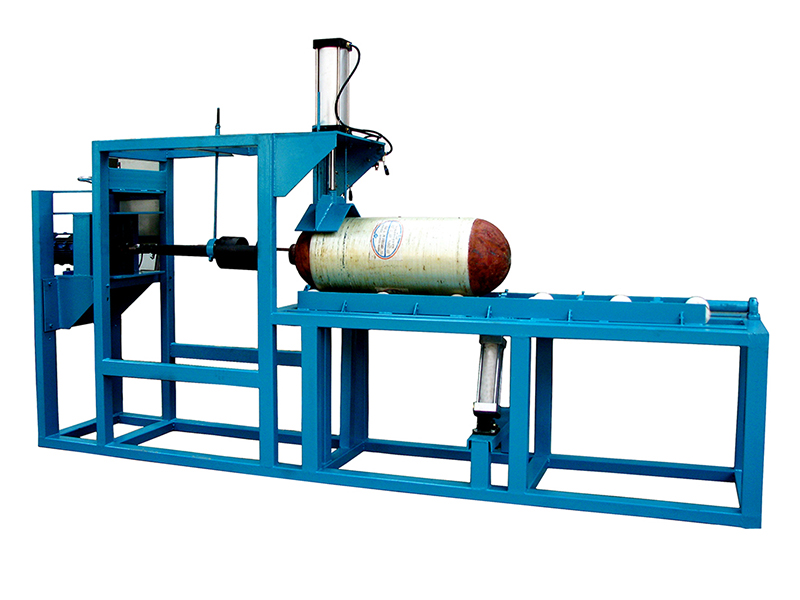

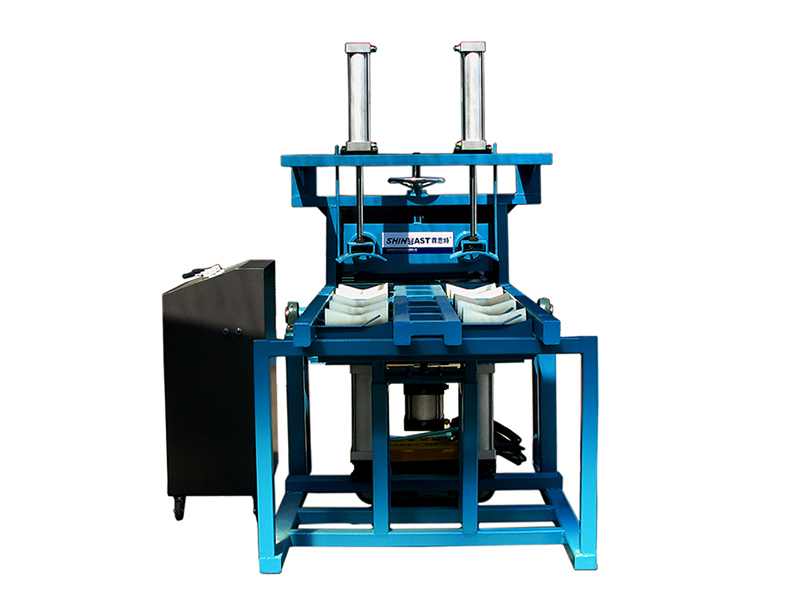

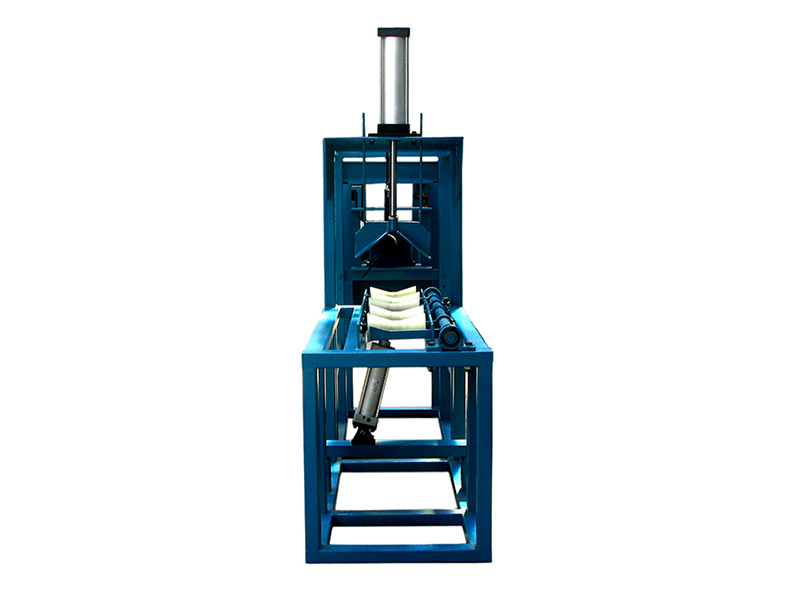

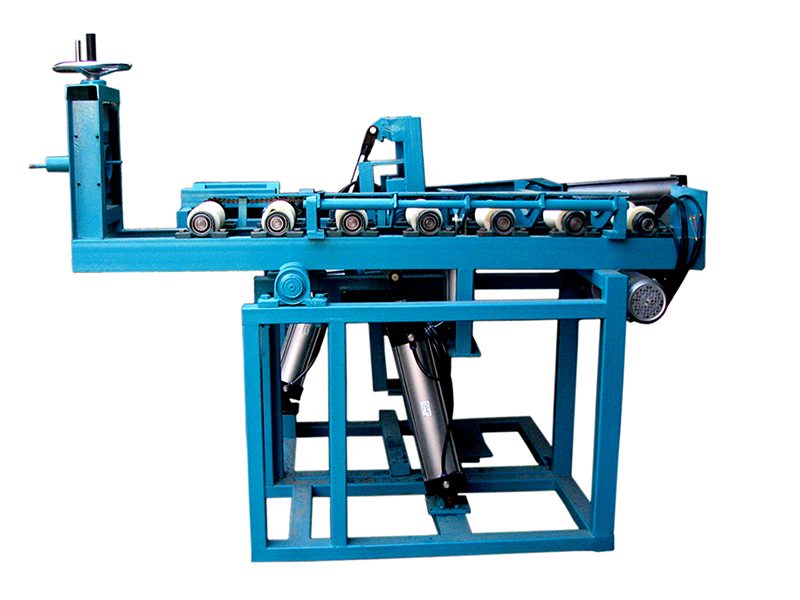

Cylinder Valve Loading and Unloading Machine

Shineeast Cylinder Valve Loading and Unloading Machine is designed and manufactured according to the requirements in China, which it is strictly prohibited to use pipe chain pliers or other tools that are easy to damage the cylinder body to load and unload cylinder valves and the requirements of cylinder manufacturers, inspection stations and other cylinder valve loading and unloading work. The equipment is suitable for valve loading and unloading of various gas cylinders with valve diameter of φ 219- φ426mm. Simple operation, safe and reliable performance.


Main technical parameters:

Model: PFX-01

Type: horizontal type, vertical type

(1) Motor power: 1.5kW

(2) Transmission ratio: 1: 60

(3) Spindle speed: 15r/min

(4) Air source pressure: 0.5-0.8MPa

(5) Applicable cylinders: diameter φ 219- φ 426mm, length: 600-2000mm

(6) Control mode: manual/automatic

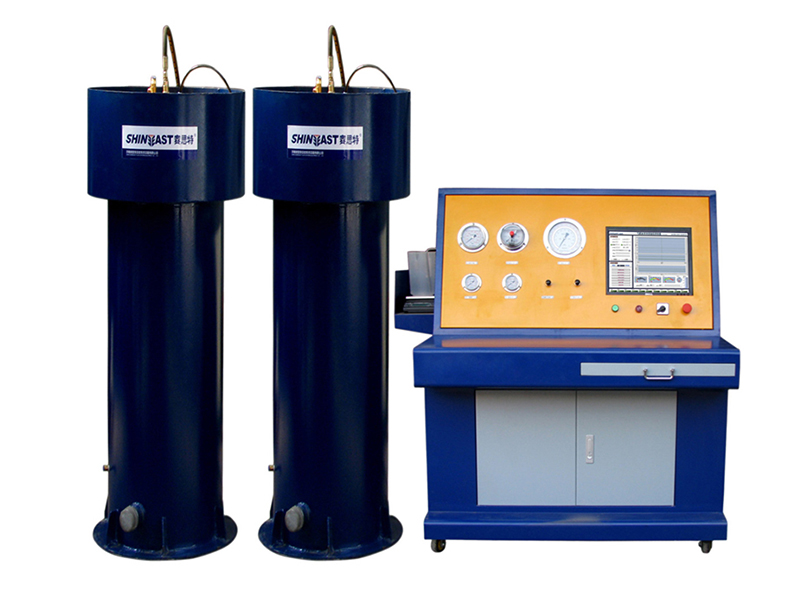

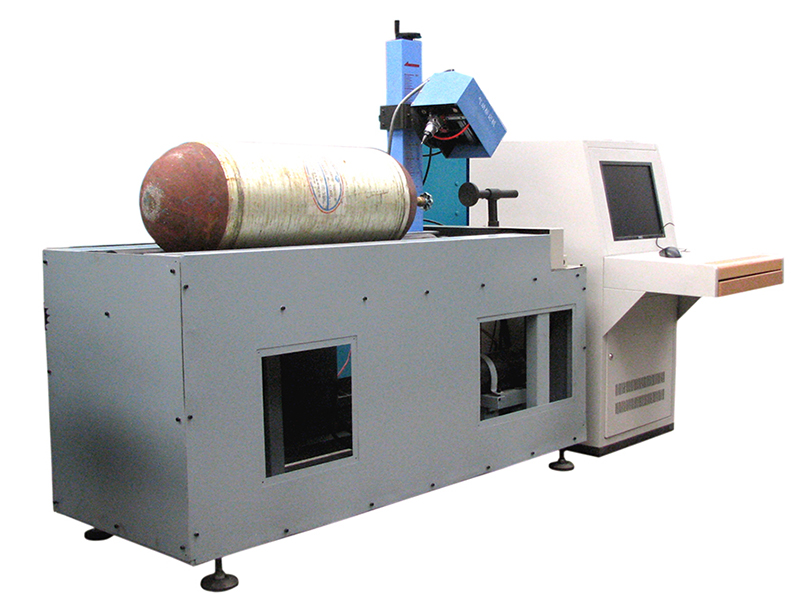

Hydrostatic Test Machine for Gas Cylinder

Shineeast Hydrostatic test machine for gas cylinder is water jacket test method, which is applicable to all hydrostatic testing where determination of volumetric expansions are required. It consists of enclosing a cylinder filled with water inside a test jacket filled with water. Pressure is then applied internally to the cylinder, causing the cylinder to expand. The total and permanent volumetric expansions of the cylinder are determined by measuring the amount of water displaced by the expansion of the cylinder when under pressure and after pressure has been released. This is the only testing method that will requalifiy a cylinder for charging to 10% in excess of the marked service pressure.



Shineeast Hydrostatic Test Machine for Gas Cylinder is applicable to the external measurement hydrostatic testing of various high-pressure gas cylinders, and the complete set of operation tests such as empty cylinder weighing, water injection, exhausting air, full cylinder weighing, hydrostatic testing etc. are carried out by computer. Through the test, the volume residual deformation rate of the cylinder can be accurately measured to ensure the safe use of the cylinder. The machine is designed and manufactured according to GB/T9521 Hydrostatic Test Method for Gas Cylinders.


Main technical parameters:

(1) Test pressure: 0-70MPa

(2) Applicable cylinder: OD: φ 219 - φ 426mm, length: 600 - 2000mm

(3) Drive air pressure: 0.6-0.8MPa

(4) Air consumption: ≥ 1M3/min

(5) Power electricity: 220V/50Hz

(6) Control mode: computer control and data acquisition card (American NI)

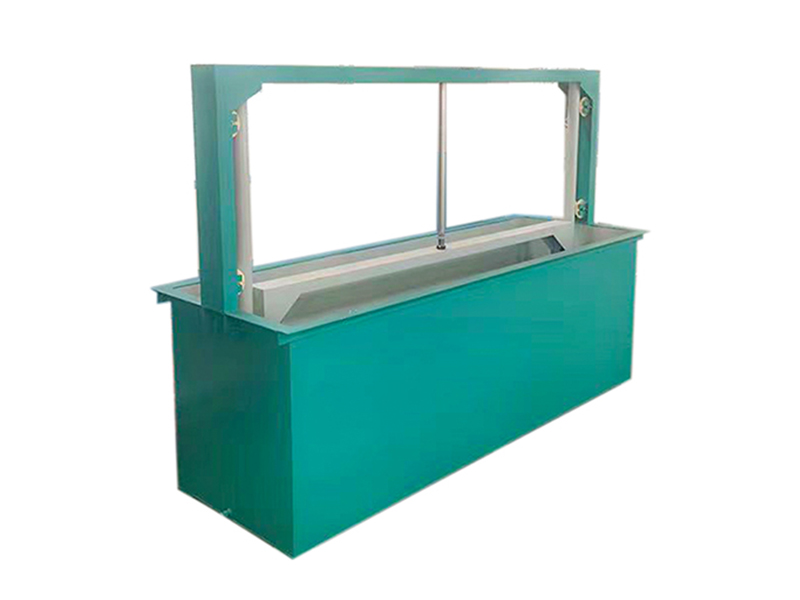

Air Leak Test Machine for Gas Cylinder

System configuration:

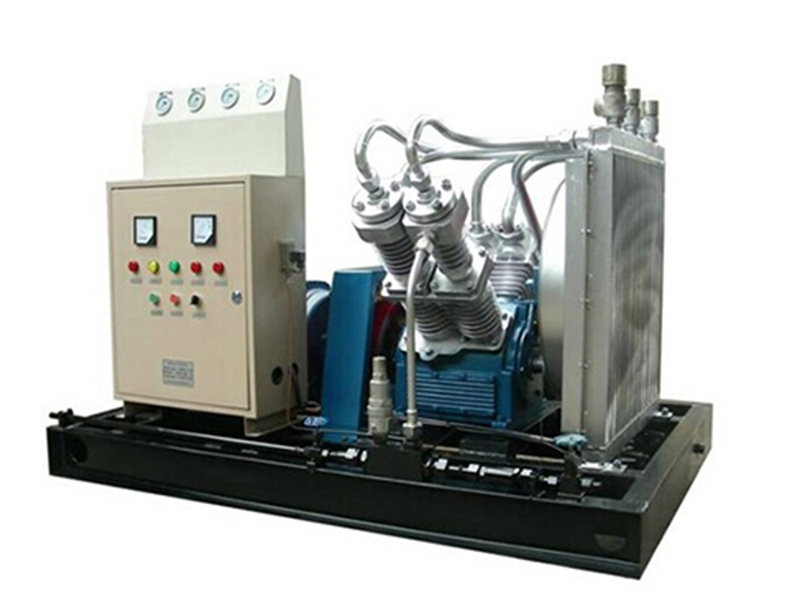

The air leak test machine mainly consists of high pressure air compressor, water tank, control cabinet, storage cylinder group.



Technical parameters of QM-2 Air leak test machine for gas cylinder:

Type: QM-2

Testing pressure:   200 Bar

Working efficiency:5-10 pieces gas cylinder per hour

Drive air pressure: 0.6-0.8Mpa

Supply electricity:  380V/50Hz

No. of stations: Two stations

Air displacement from high pressure: 1.5N M3/min

Cooling type: Wind cooling


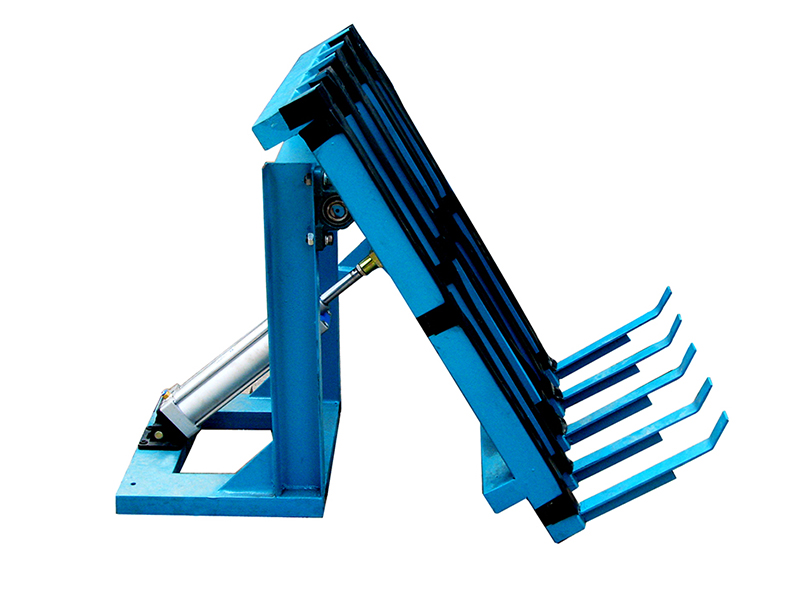

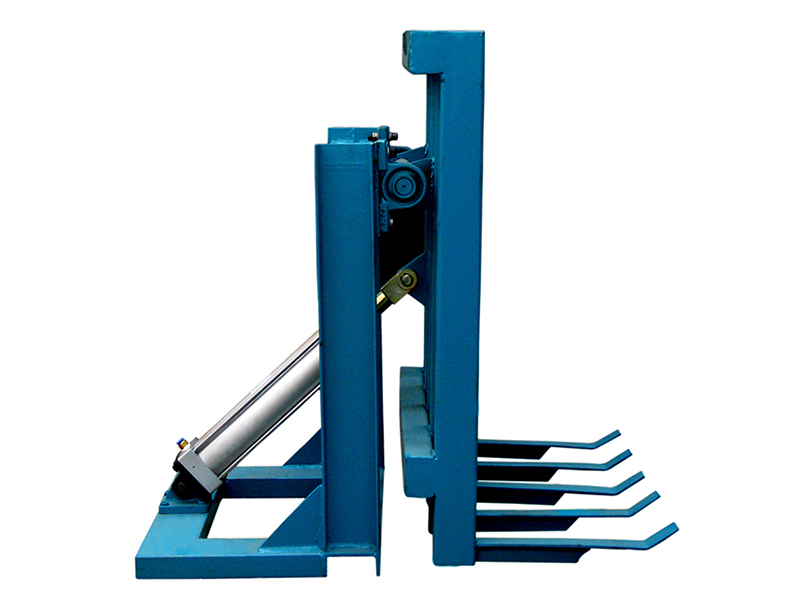

Cylinder Internal Dryer Machine

Shineeast Cylinder Internal Dryer Machine is used for drying the internal of gas cylinder after hydrostatic testing, and the simplest way to remove the water inside the cylinder is to blow it with hot air. This equipment adopts electric heating mode, and the temperature is adjustable. The fan sends hot air to the inside of the cylinder for drying.

The equipment is equipped with electric heater and fan, with compact structure, convenient installation, simple use and reliable performance, it is one of the necessary special equipment for internal drying of gas cylinders.



Main technical parameters

Model: GZ-01

(1) Applicable cylinder: diameter φ 219- φ 426mm, 600-2000mm long

(2) Set temperature: 0-100 ℃

(3) Total power: 17KW

(4) Bottle turnover rack: 2 stations

(5) Working efficiency: ≥ 12 pieces/h

(6) No. of station: 4-station

(7) Overall dimension: about 2100 × one thousand × 1100mm

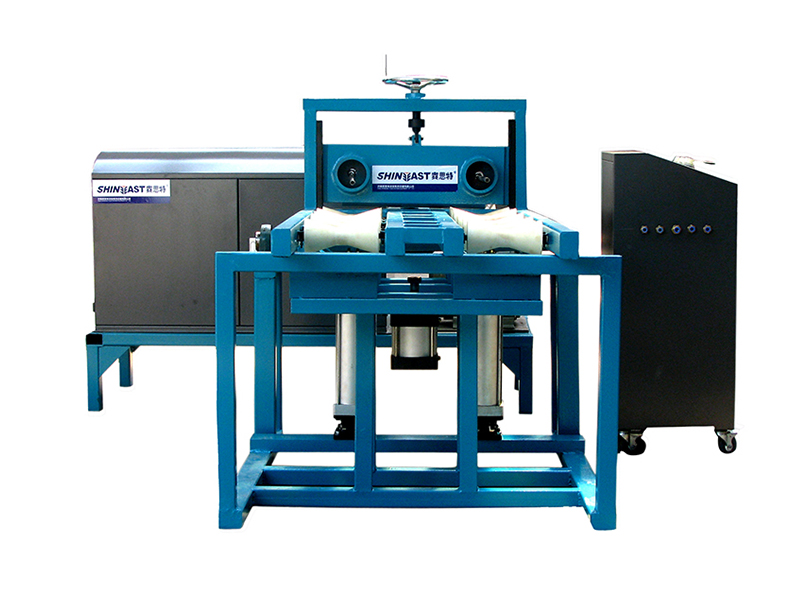

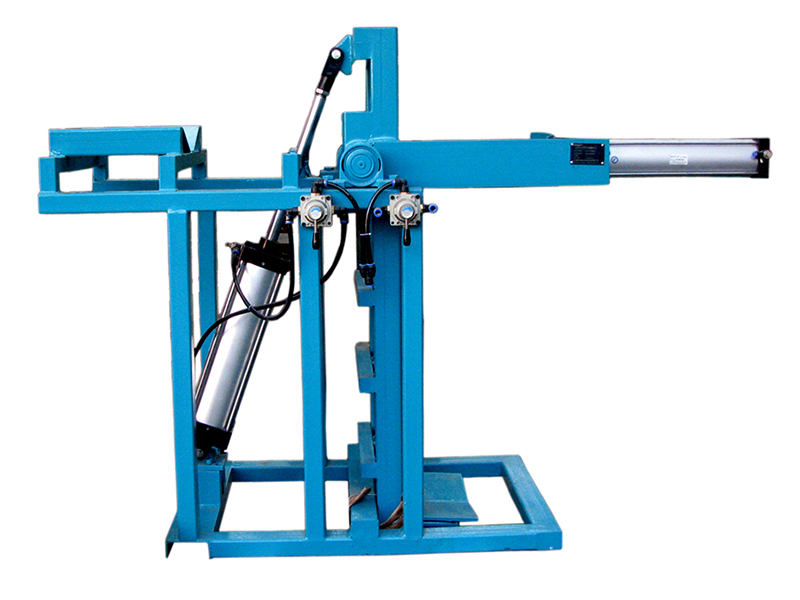

Combined Machine for Cleaning, Drying and Pouring Water

The combined machine is equipped with clamping device and gear motor, which make the machine have the function of turning over gas cylinder 180 degrees, this can realize gas cylinder pouring water; the machine is also equipped with one high pressure water pump and one steam vapor machine, the high pressure water pump is in charge of cleaning the internal of the cylinder, and the steam vapor machine is used for drying the internal of the cylinder.

The process sequence of the machine is pouring water—cleaning the inside of cylinder---drying the inside of cylinder.

The machine is applicable to the cylinders with diameter between 200mm and 406mm, with height 700-1300mm; and it can deal with one gas cylinder at one time.


Model: CM-01-01

Applicable cylinder size: Outer diameter:200-406cm, height:700x1300mm

Overturn speed: 3.8 r/min

Gear motor: 2.2KW/380V

Dryer part (vapor generator): 9KW/380V

Water pump for cleaning the cylinder: 0.75KW/380V

overturn angle: 180°

Air pressure: 3-8 bar

No. of station: One station

Main parts of the machine: Overturn stand, control panel, gearbox, water pump, vapor generator etc.

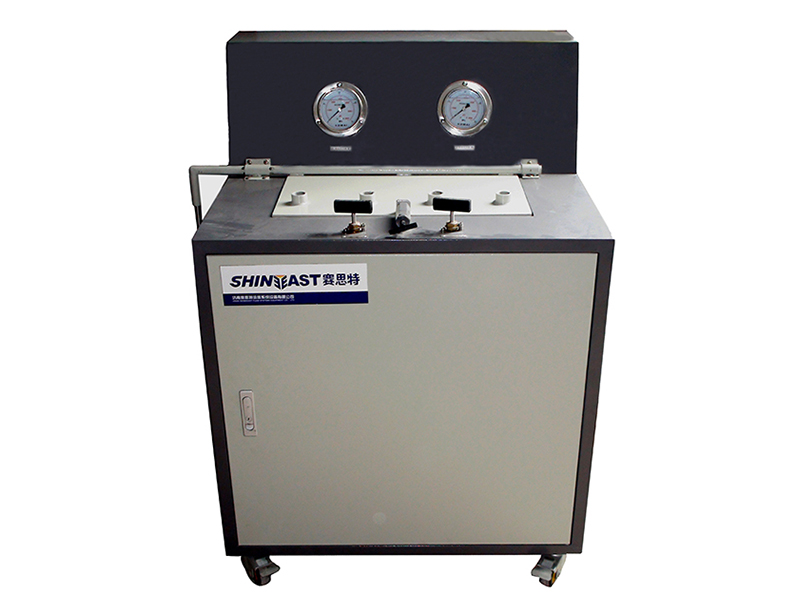

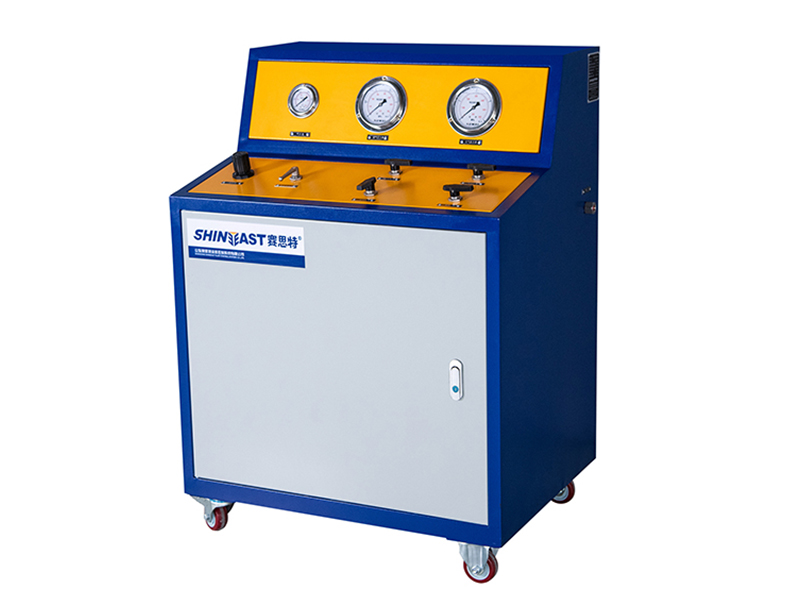

Cylinder Valve Test Machine

Main technical parameters

Model: FX-01

(1) Air source pressure: ≥ 20 MPa

(2) Test pressure: 20MPa

(3) Test medium: compressed air

(4) Driving pressure: 0.4-0.8 MPa

(5) Working efficiency: 40-50 pieces/h

(6) Overall dimension: about 750 × 650 × 1200mm
