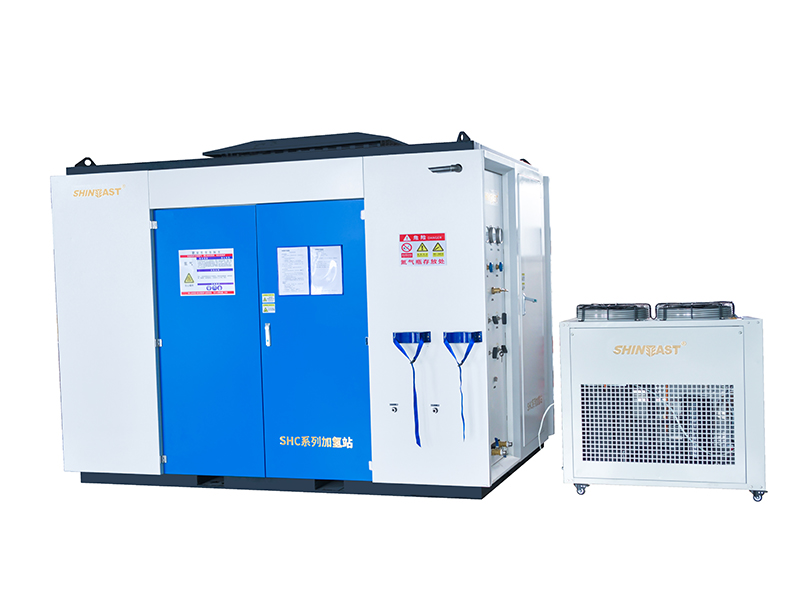

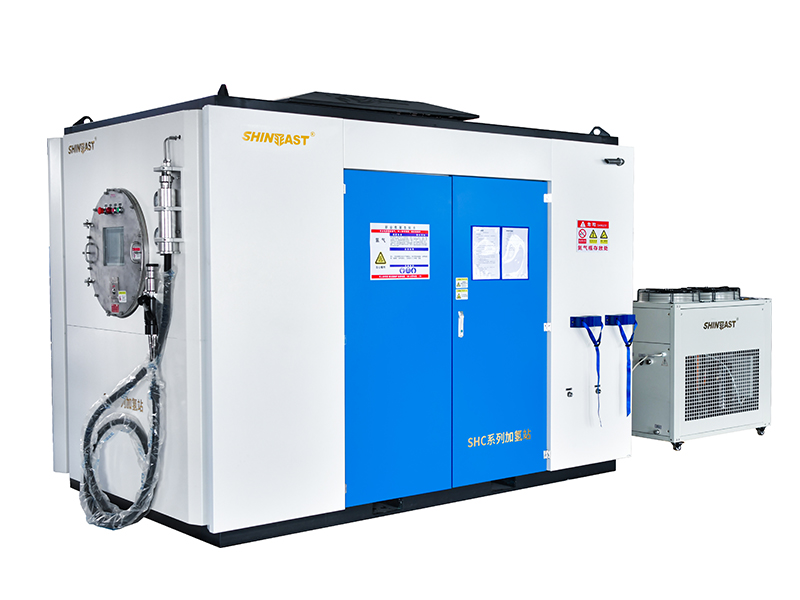

Equipment Introduction
The hydrogen compressor used in the hydrogen refueling station is centered around a liquid driven hydrogen booster, with a design pressure of up to 100 MPa, used for hydrogen refueling of 70MPa grade hydrogen fuel vehicles at the refueling station.
The hydrogen compressor system has the characteristics of high integration, simple operation, flexible control, convenient maintenance, and low overall cost.
Equipment composition
The equipment mainly consists of a liquid driven gas booster, a hydraulic pump station, a cooling system, and an electrical control part
Function of liquid driven gas compressor: The compressor uses hydraulic pressure as the driving power source to pressurize gas with a certain pressure, and reaches the rated exhaust pressure when the flow rate meets the requirements.
Technical parameter
Equipment model: SHC-100-500-H2
Compressed medium: high-purity hydrogen gas
Compression type: hydraulic piston type
Compression level: Two levels
Intake pressure (Mpa): 5-20.0
Intake temperature (℃): ＜ 40
Maximum exhaust pressure (MPa): 100
Exhaust temperature (after cooling) (℃): ≤ 40
Refueling capacity (kg ³/ d) 12h: ≥ 500 (inlet 12.5MPa, outlet 45MPa)
Cooling method: water cooling
Motor voltage (V): 380V/50Hz
Explosion proof level: Ex dII CT4
Applicable occasions: hydrogen refueling stations
