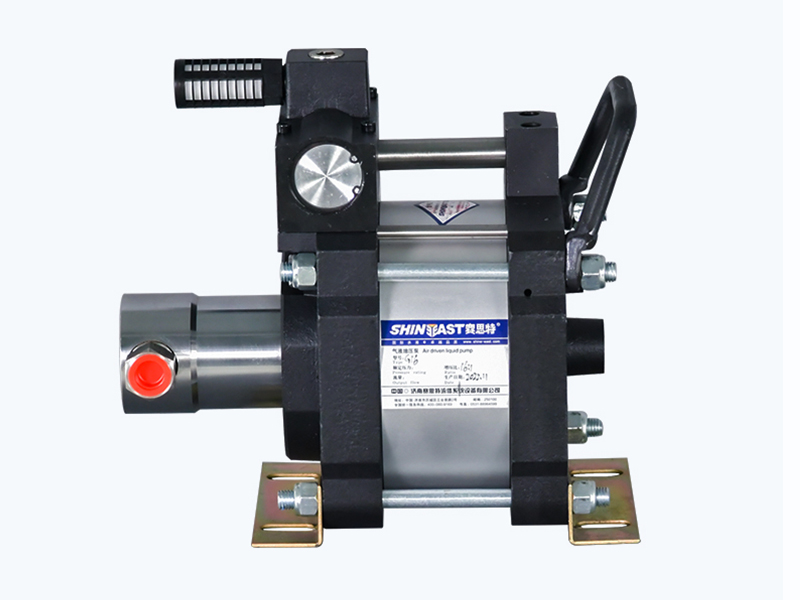

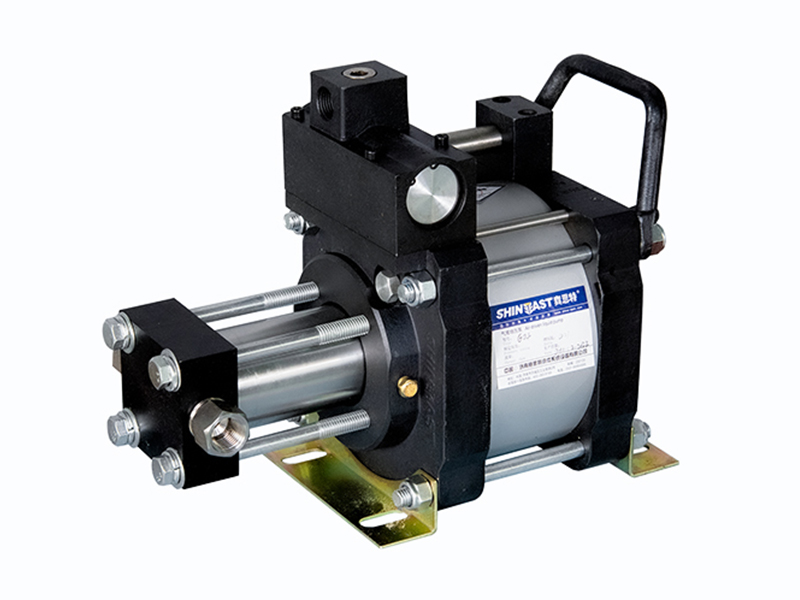

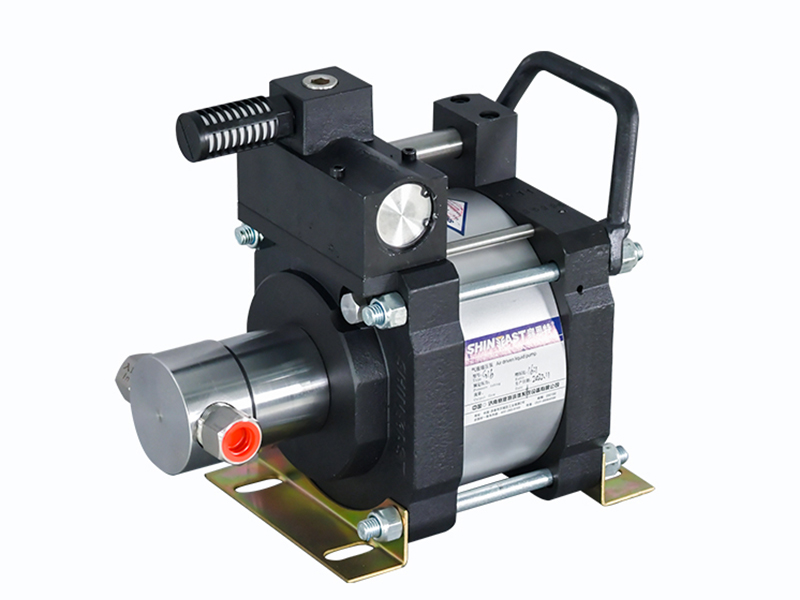

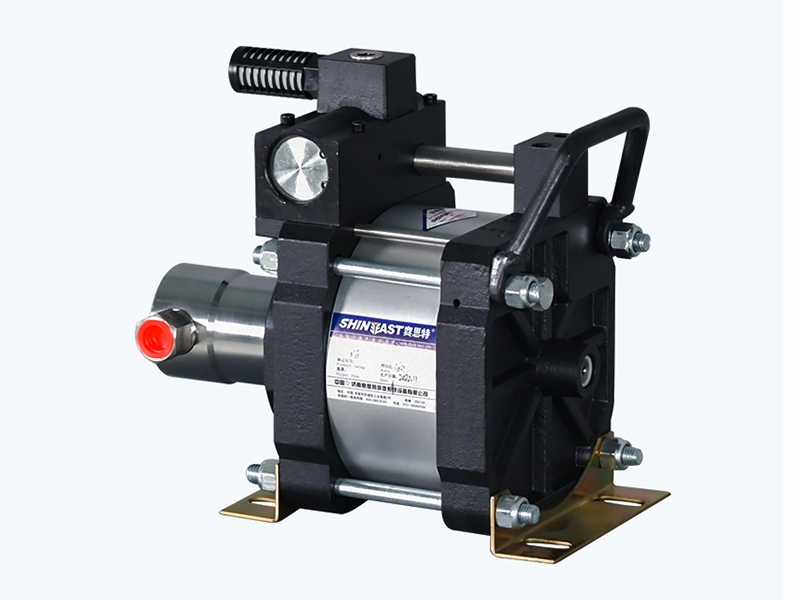

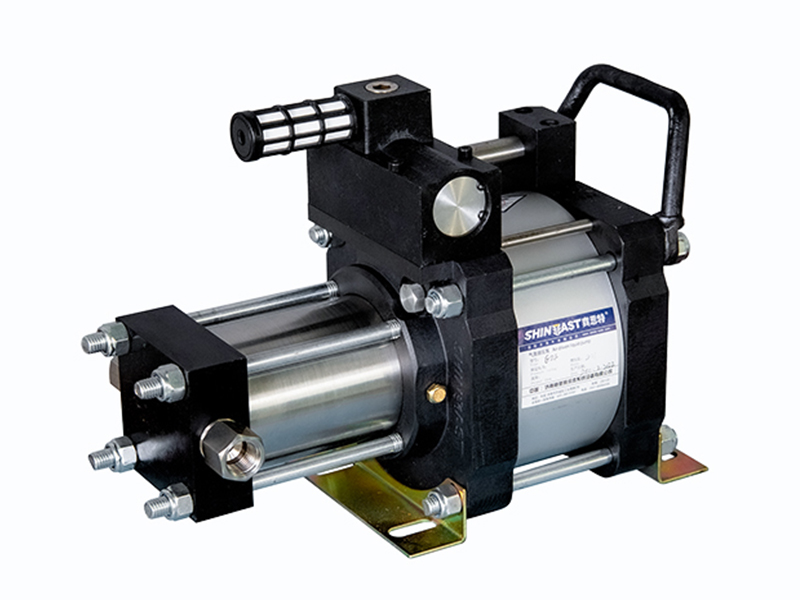

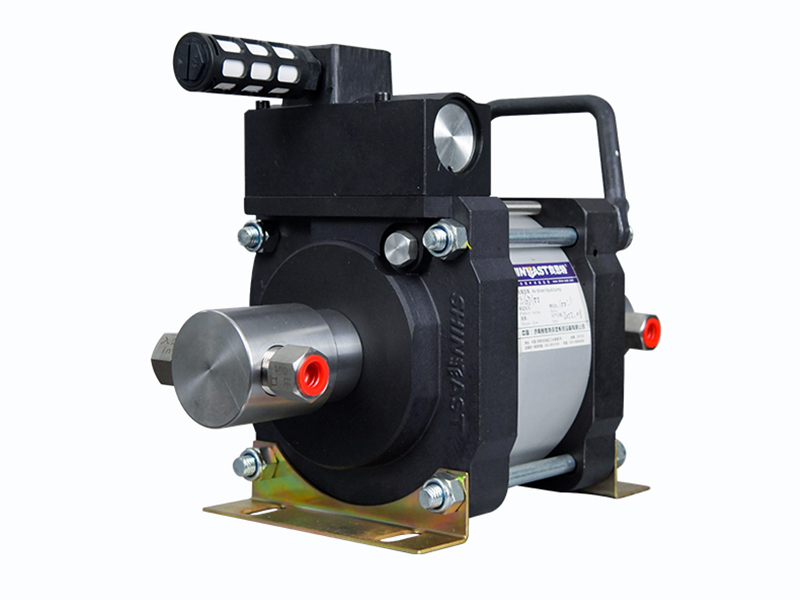

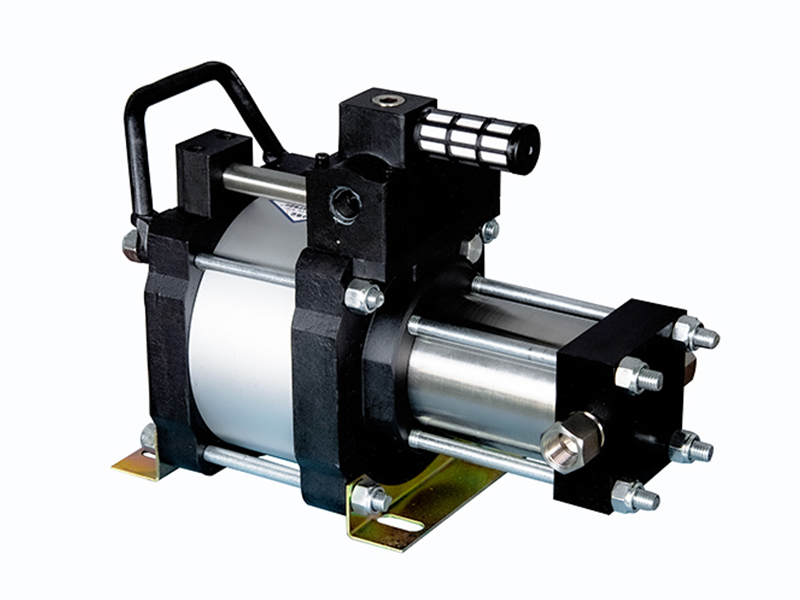

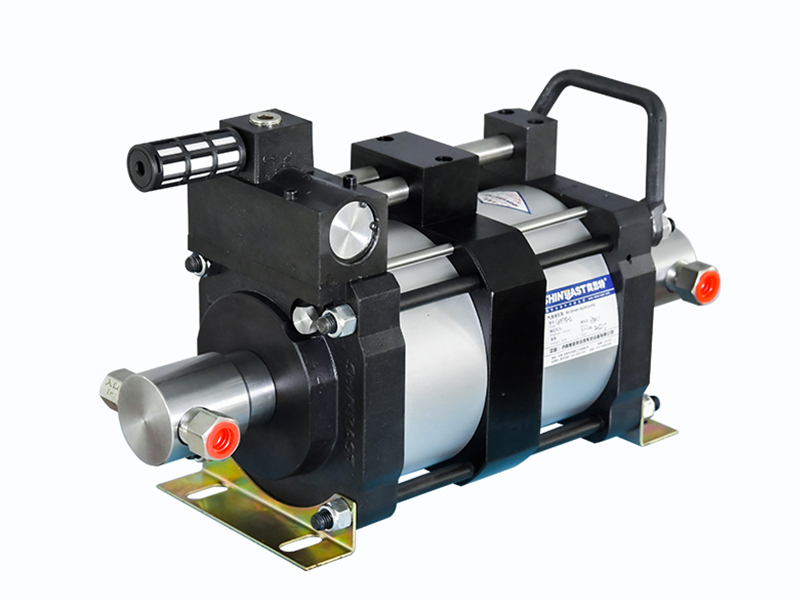

The G series gas-liquid booster pump adopts a single gas controlled non-equilibrium gas distribution valve to achieve automatic reciprocating motion of the pump. The gas drive part of the pump body is entirely made of aluminum alloy, and the aluminum alloy components are processed and oxidized to black to ensure the aesthetic appearance of the product.
The material of the liquid receiving part is selected from carbon steel or stainless steel according to different media, and the complete set of seals for the pump are all imported high-quality products, thus ensuring the performance of the pump. The diameter of the drive piston in this series is 160mm.
The maximum driving air pressure is 10 bar. To ensure the lifespan of the pump, it is recommended to use an air pressure of ≤ 8 bar.
*The boost ratio is the area of the driving piston divided by the area of the hydraulic plunger
*Static outlet pressure (estimated and maximum allowable) at an air driven pressure of 8 bar (116 psi)
*The flow rate is the approximate flow rate of the liquid pump when the air driven pressure is 6 bar (87 psi) and the outlet pressure is 0
*The minimum driving pressure required for the operation of the liquid pump is 3 bar (43.5 psi), and a certain output pressure is achieved based on a specific pressure ratio

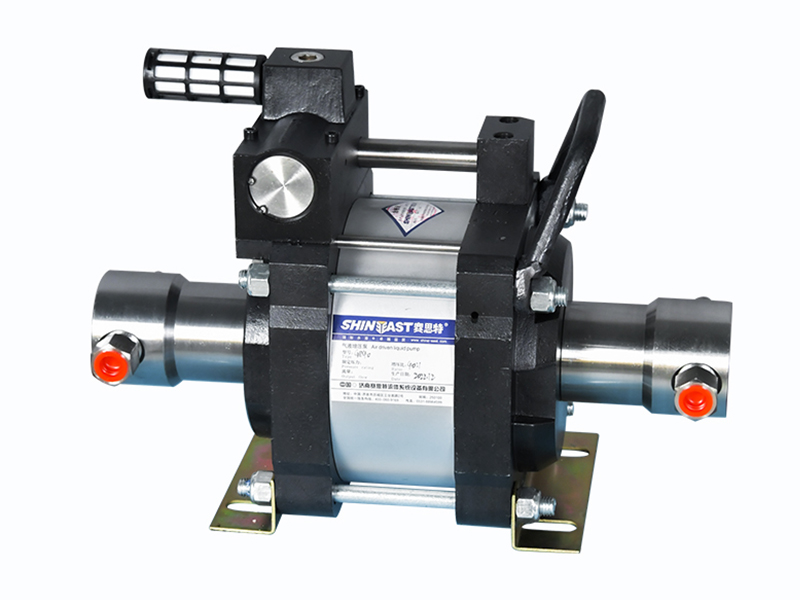

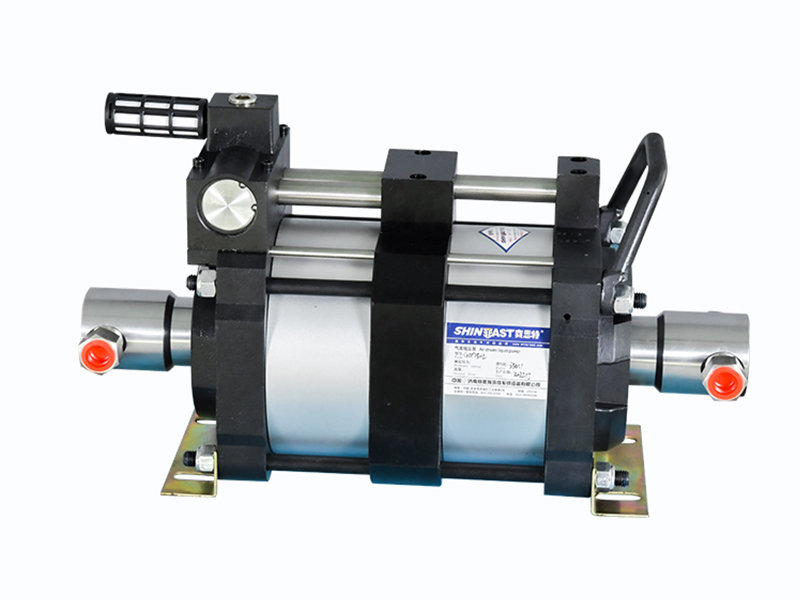

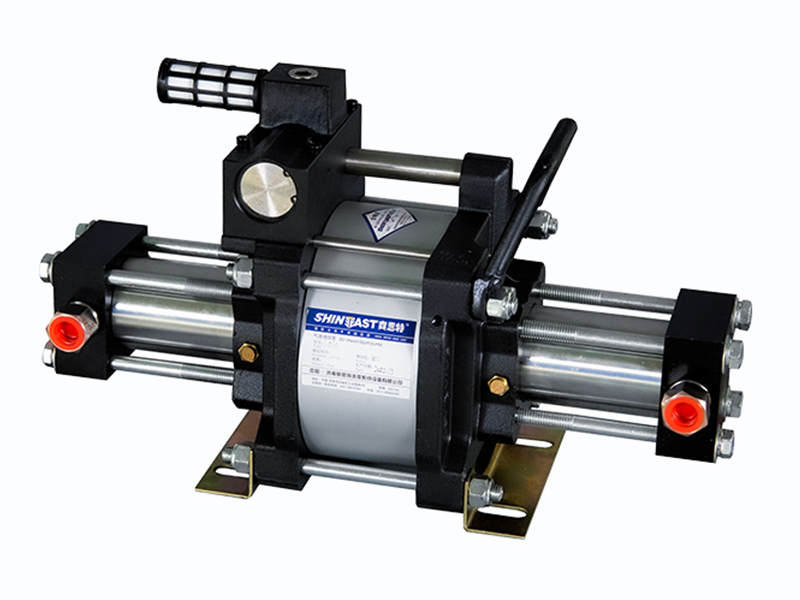

GD series gas-liquid booster pump

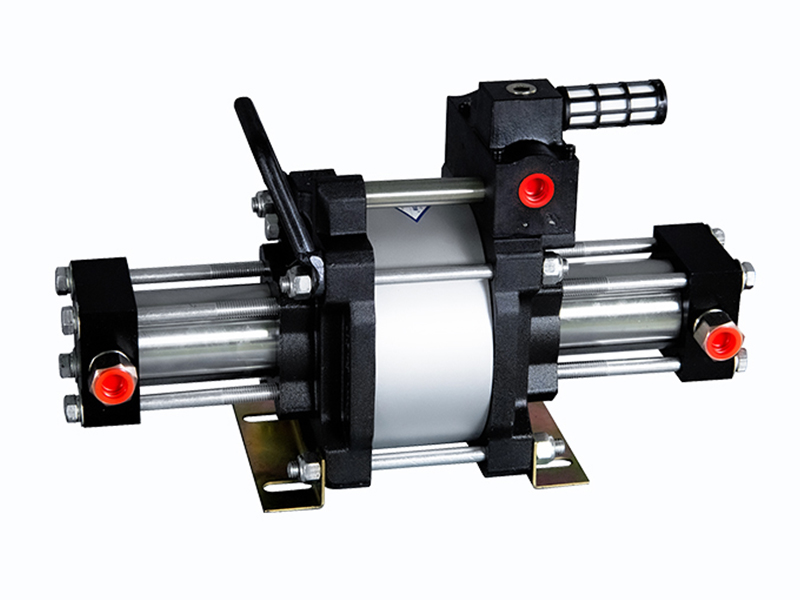

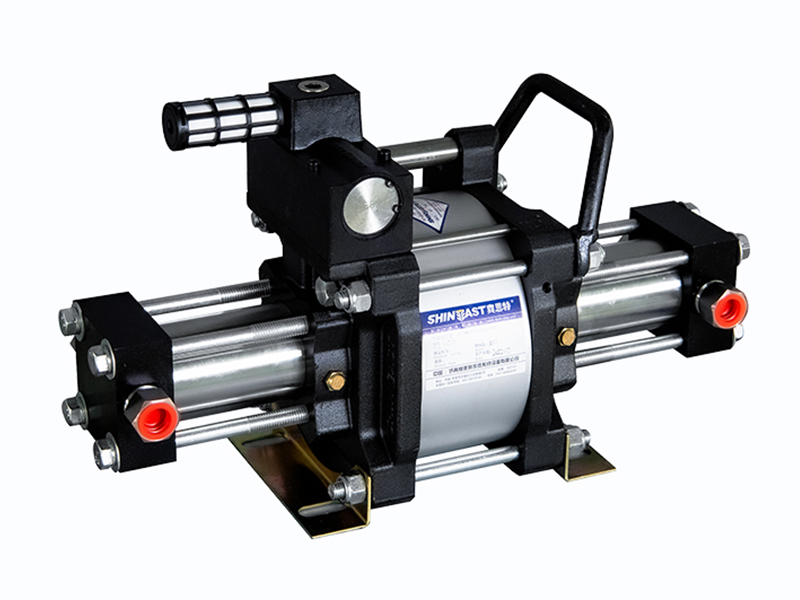

The GD series pump is a single pneumatic head double acting pump with the same characteristics as the M series pump, but compared with the G series pump of the same specification, the pulse is smaller and its flow rate is 50% higher than the M series single acting pump.
*The boost ratio is the area of the driving piston divided by the area of the hydraulic plunger
*Static outlet pressure (estimated and maximum allowable) at an air driven pressure of 8 bar (116 psi)
*The flow rate is the approximate flow rate of the liquid pump when the air driven pressure is 6 bar (87 psi) and the outlet pressure is 0
*The minimum driving pressure required for the operation of the liquid pump is 3 bar (43.5 psi), and a certain output pressure is achieved based on a specific pressure ratio

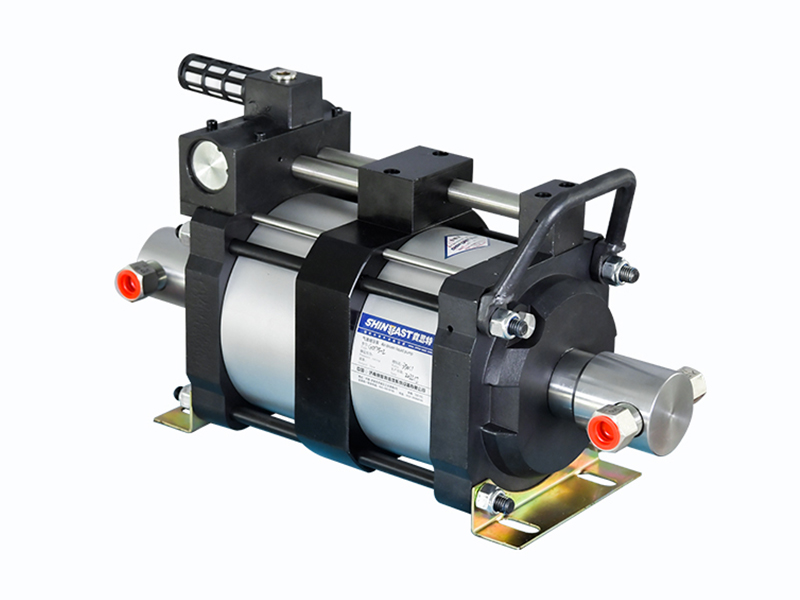

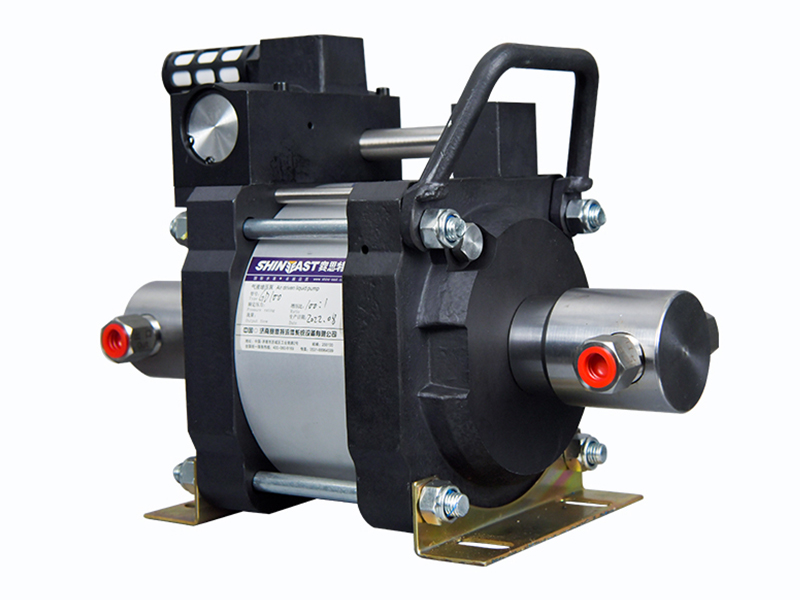

G-2 series gas-liquid booster pump

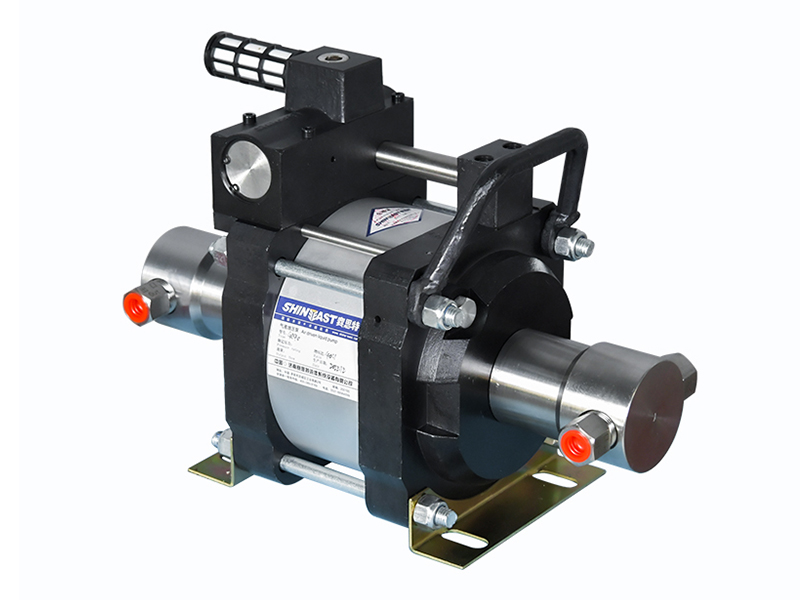

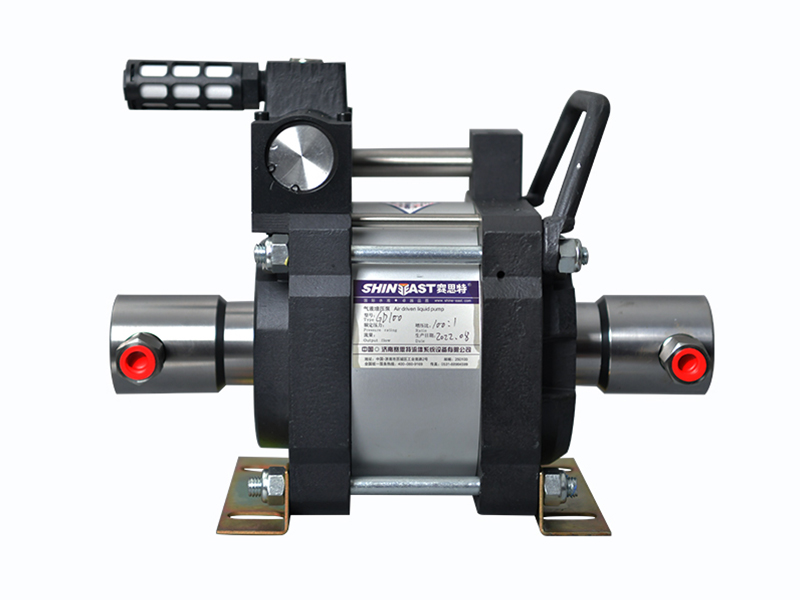

The G-2 series pump is a single acting dual drive head booster pump, which can generate twice the output pressure under the same air drive pressure compared to the G series pump.
*The boost ratio is the area of the driving piston divided by the area of the hydraulic plunger
*Static outlet pressure (estimated and maximum allowable) at an air driven pressure of 8 bar (116 psi)
*The flow rate is the approximate flow rate of the liquid pump when the air driven pressure is 6 bar (87 psi) and the outlet pressure is 0
*The minimum driving pressure required for the operation of the liquid pump is 3 bar (43.5 psi), and a certain output pressure is achieved based on a specific pressure ratio
Shandong Shineeast Fluid Control Systems Co., Ltd., founded in 2001, is a professional manufacturer of highly engineered fluid and gas handling equipment designed to generate, store and control high pressure gases and liquids.
In addition to offering a comprehensive range of air driven liquid pumps, air pressure boosters, air driven gas boosters, high pressure valves, fittings and accessories, pnematic power packs and hydraulic presses, pressure test machines, valve and pipe fittings test equipments, finishing pumps and related equipments, gas cylinder test equipments and the oil and gas field special controls and test equipments, we customize and build pneumatic power packs and test equipment. Our main manufacturing locations are fully registered to ISO9001 and CE.
