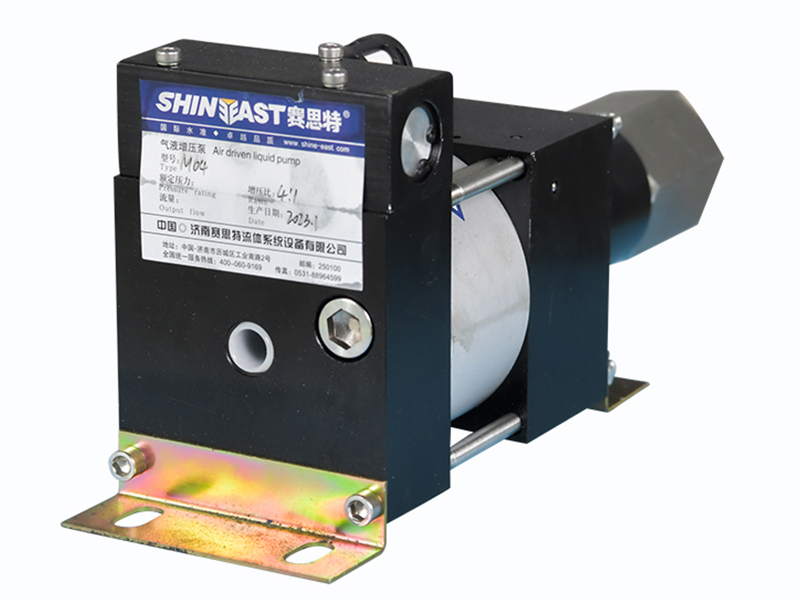

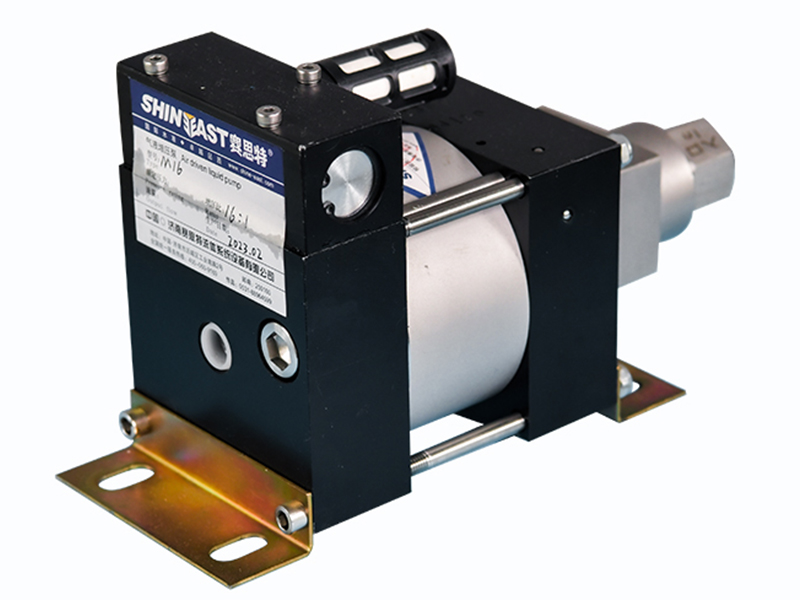

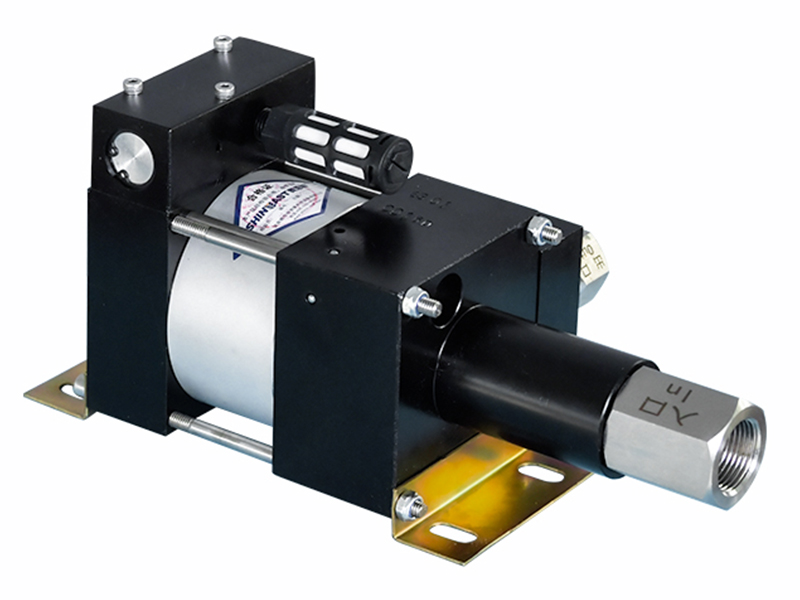

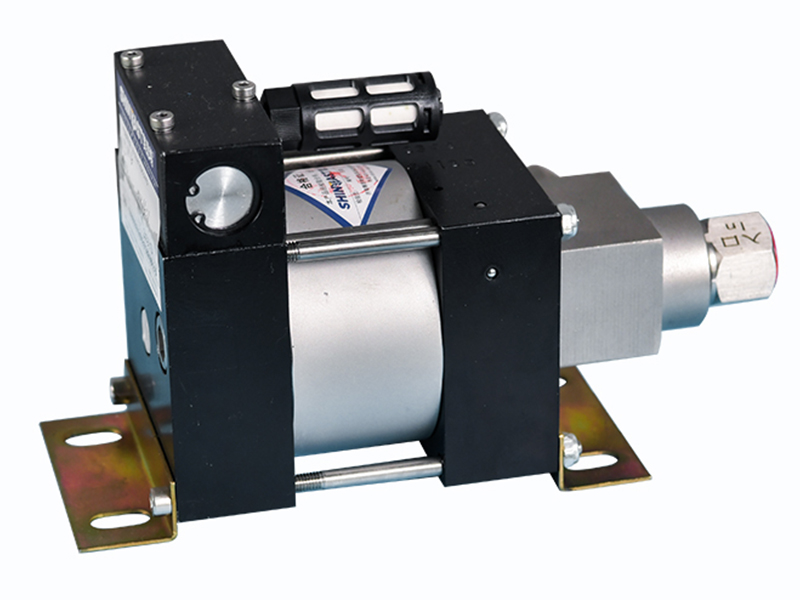

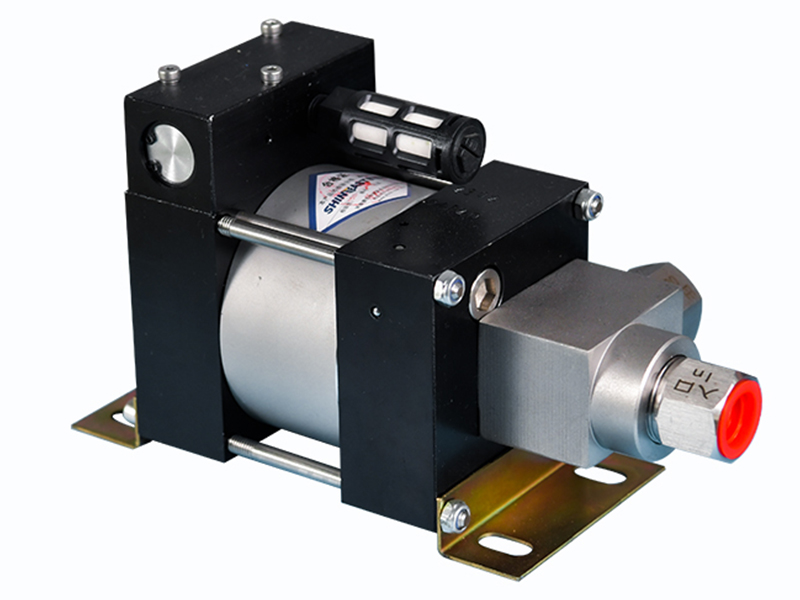

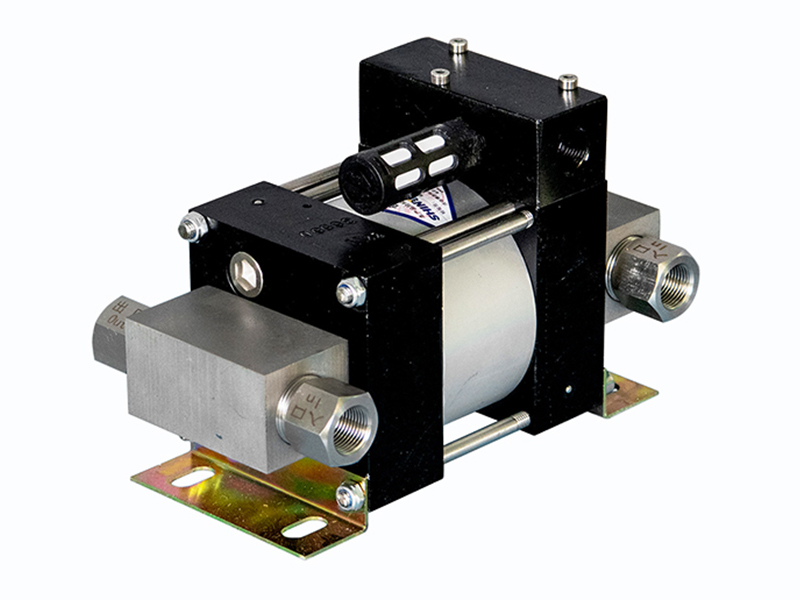

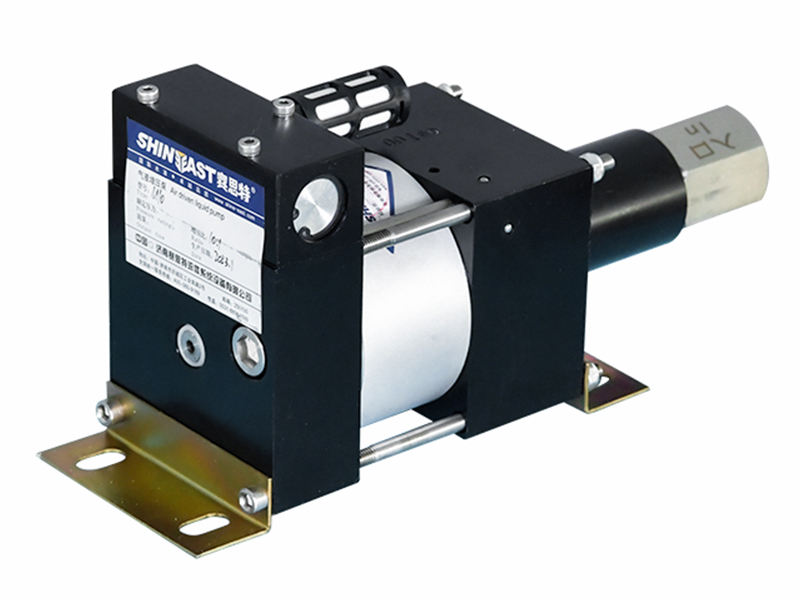

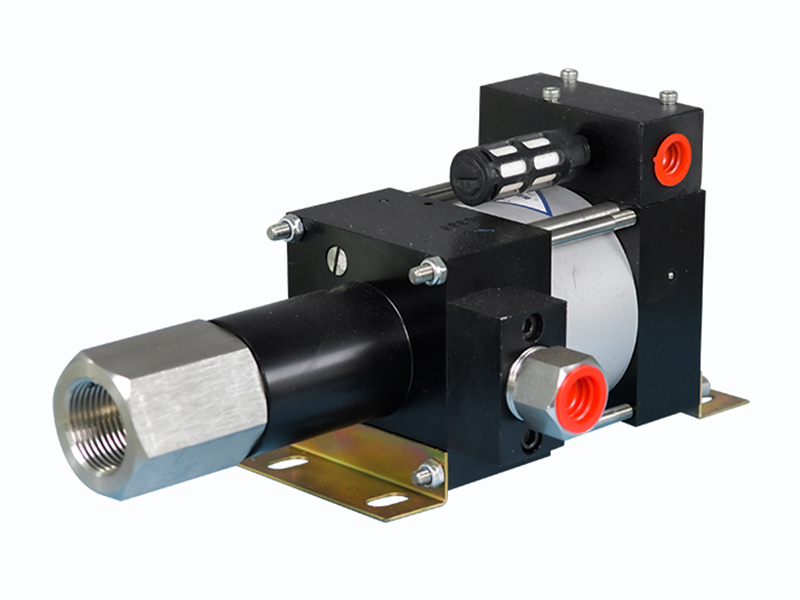

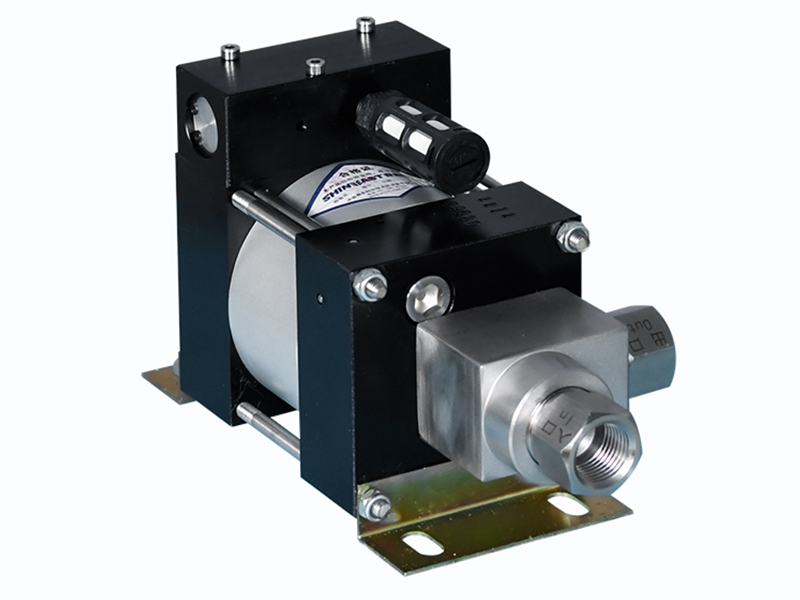

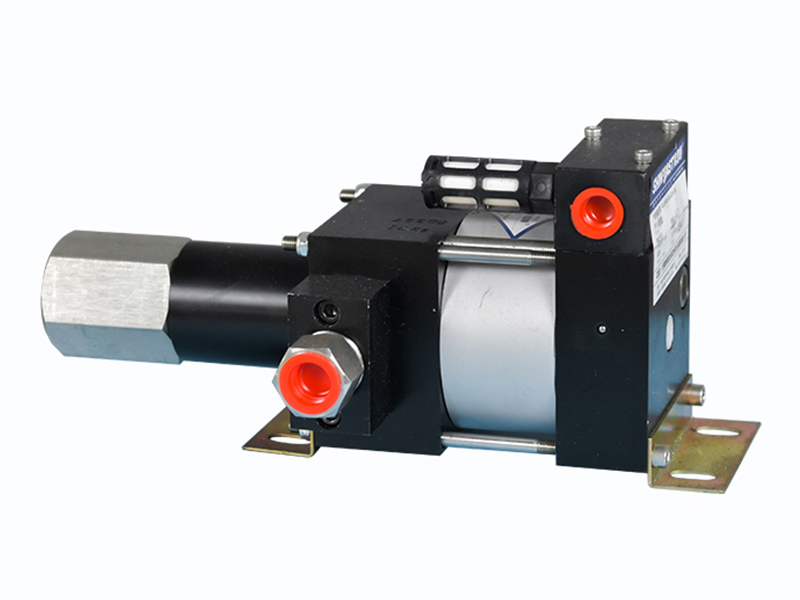

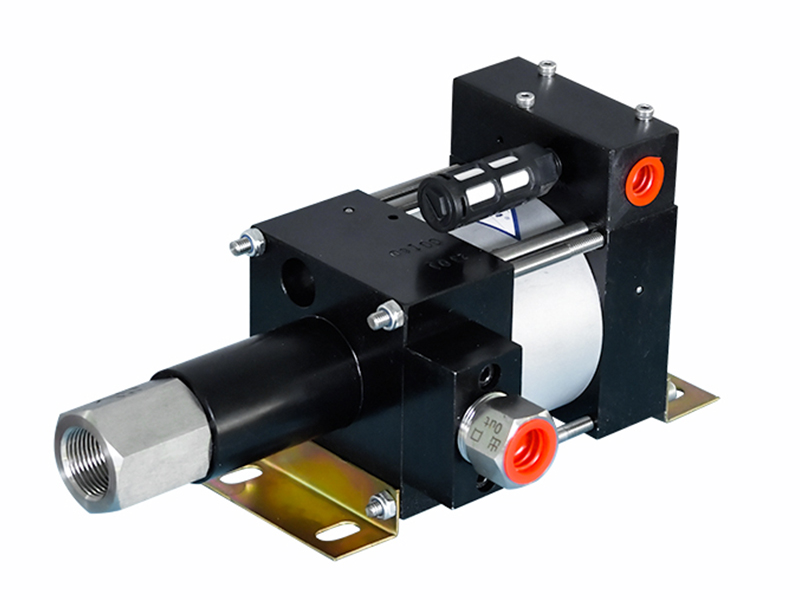

M-series gas-liquid booster pump
The drive piston diameter of this series of products is 80mm, and the air pressure used is ≤ 8bar. This series of pumps has the following characteristics:
◆ Lightweight and easy to carry ◆ Large flow rate and wide pressure range ◆ Easy to control, both manual and automatic control can be achieved
◆ Suitable for most liquids ◆ No need for electricity, can be used in dangerous situations ◆ Easy to maintain
*The boost ratio is the area of the driving piston divided by the area of the hydraulic plunger
*Static outlet pressure (estimated and maximum allowable) at an air driven pressure of 8 bar (116 psi)
*The flow rate is the approximate flow rate of the liquid pump when the air driven pressure is 6 bar (87 psi) and the outlet pressure is 0
*The minimum driving pressure required for the operation of the liquid pump is 3 bar (43.5 psi), and a certain output pressure is achieved based on a specific pressure ratio

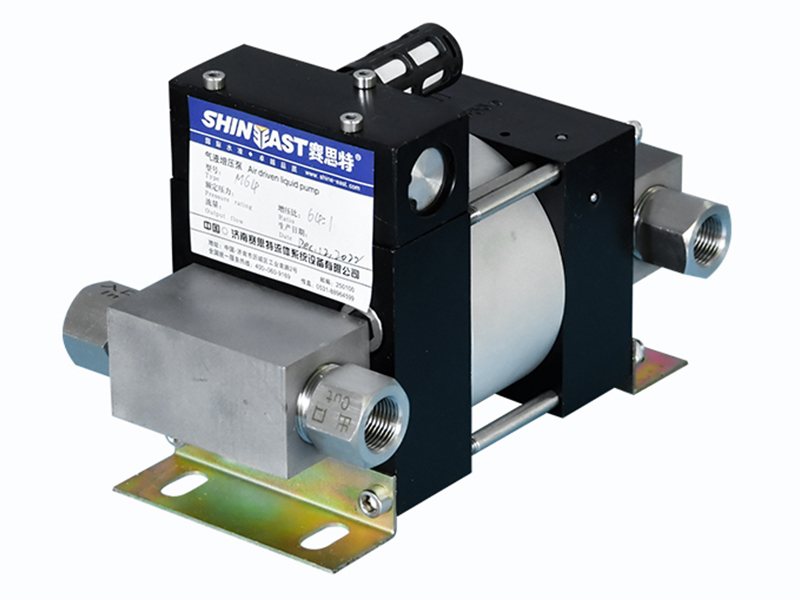

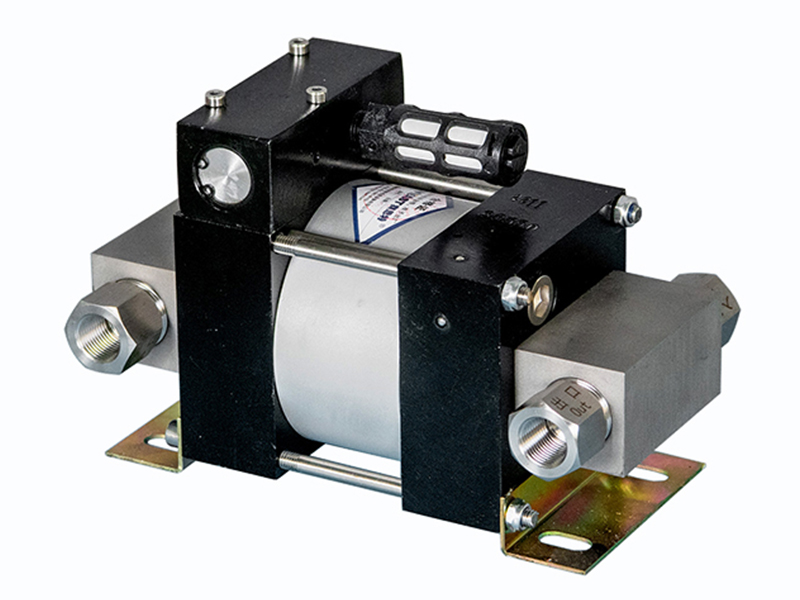

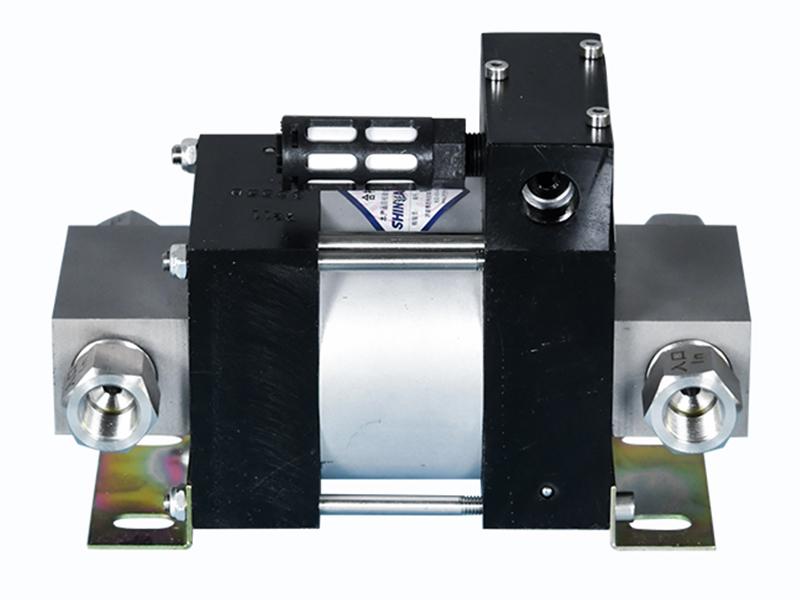

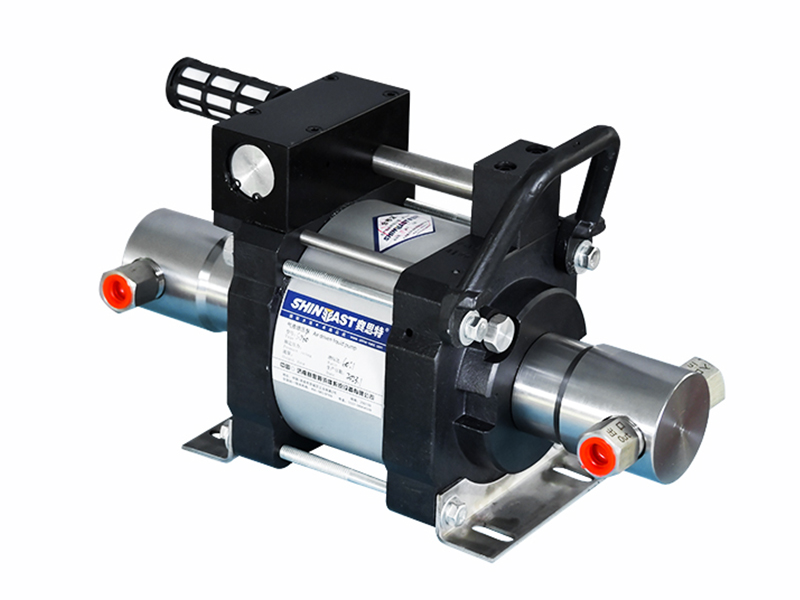

MD series gas-liquid booster pump
The MD series pump is a single drive double acting pump with the same characteristics as the M series pump, but compared with the M series pump of the same specification, the pulse is smaller and its flow rate is higher than M
The series single acting pump has increased by 50%.
*The boost ratio is the area of the driving piston divided by the area of the hydraulic plunger
*Static outlet pressure (estimated and maximum allowable) at an air driven pressure of 8 bar (116 psi)
*The flow rate is the approximate flow rate of the liquid pump when the air driven pressure is 6 bar (87 psi) and the outlet pressure is 0
*The minimum driving pressure required for the operation of the liquid pump is 3 bar (43.5 psi), and a certain output pressure is achieved based on a specific pressure ratio
M * * -2 series gas-liquid booster pump
The M * * -2 series pump is a single acting dual drive head booster pump, which can generate twice the output pressure under the same air drive pressure compared to the M series pump.
M * * -3 series gas-liquid booster pump
The M * * -3 series pump is a single acting three drive head booster pump, which can generate three times the output pressure under the same air drive pressure compared to the M series pump.
*The boost ratio is the area of the driving piston divided by the area of the hydraulic plunger
*Static outlet pressure (estimated and maximum allowable) at an air driven pressure of 8 bar (116 psi)
*The flow rate is the approximate flow rate of the liquid pump when the air driven pressure is 6 bar (87 psi) and the outlet pressure is 0
*The minimum driving pressure required for the operation of the liquid pump is 3 bar (43.5 psi), and a certain output pressure is achieved based on a specific pressure ratio
Shandong Shineeast Fluid Control Systems Co., Ltd., founded in 2001, is a professional manufacturer of highly engineered fluid and gas handling equipment designed to generate, store and control high pressure gases and liquids.
In addition to offering a comprehensive range of air driven liquid pumps, air pressure boosters, air driven gas boosters, high pressure valves, fittings and accessories, pnematic power packs and hydraulic presses, pressure test machines, valve and pipe fittings test equipments, finishing pumps and related equipments, gas cylinder test equipments and the oil and gas field special controls and test equipments, we customize and build pneumatic power packs and test equipment. Our main manufacturing locations are fully registered to ISO9001 and CE.
