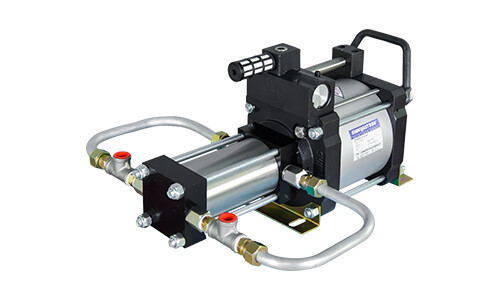

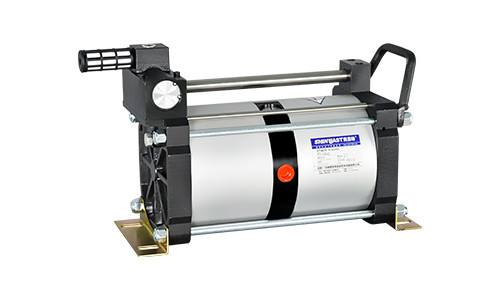

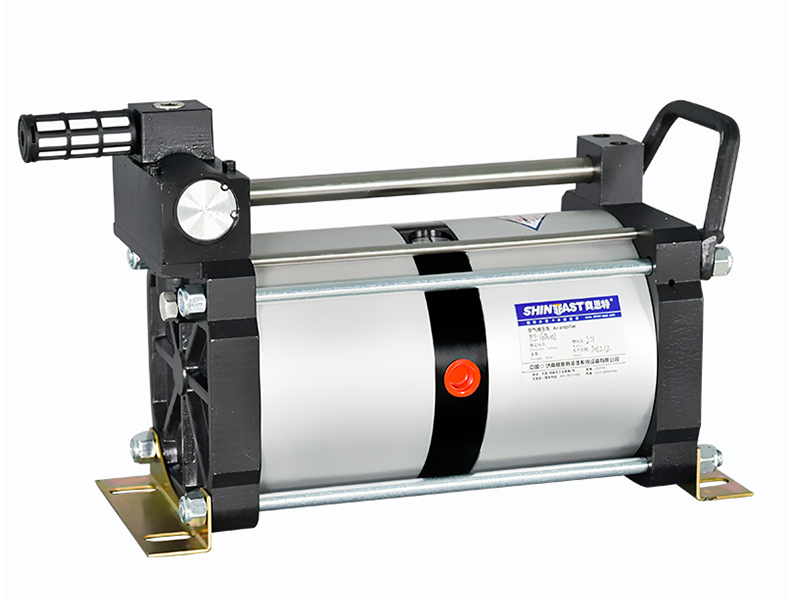

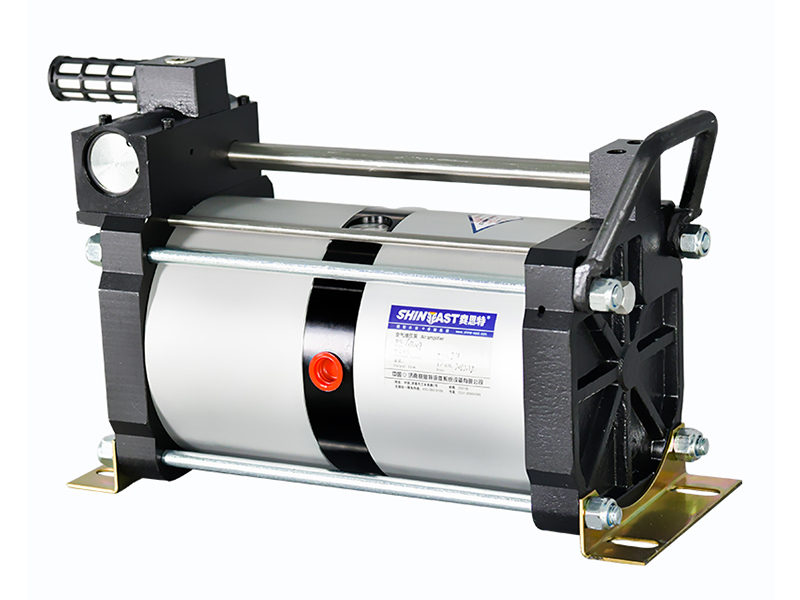

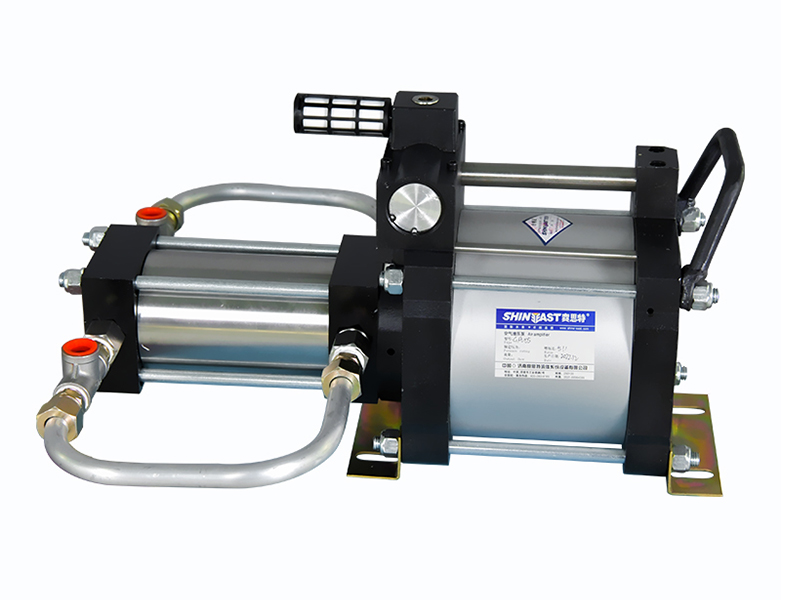

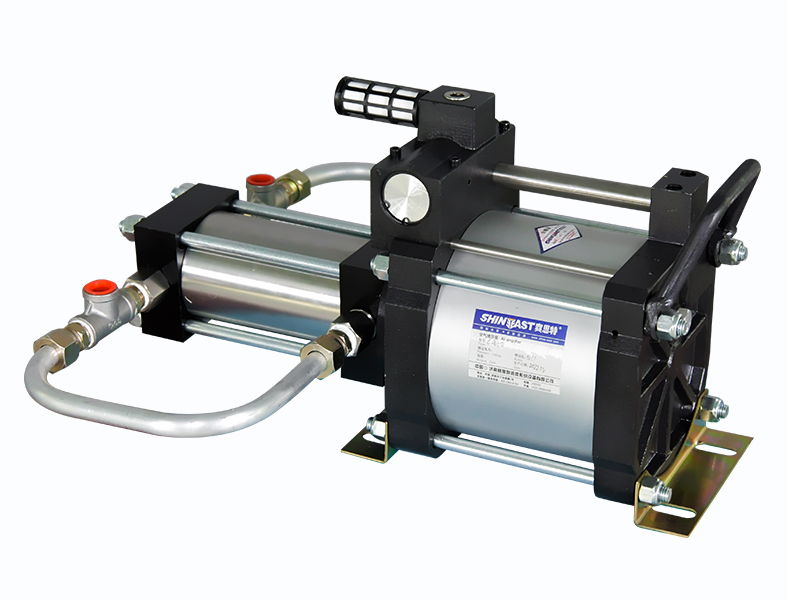

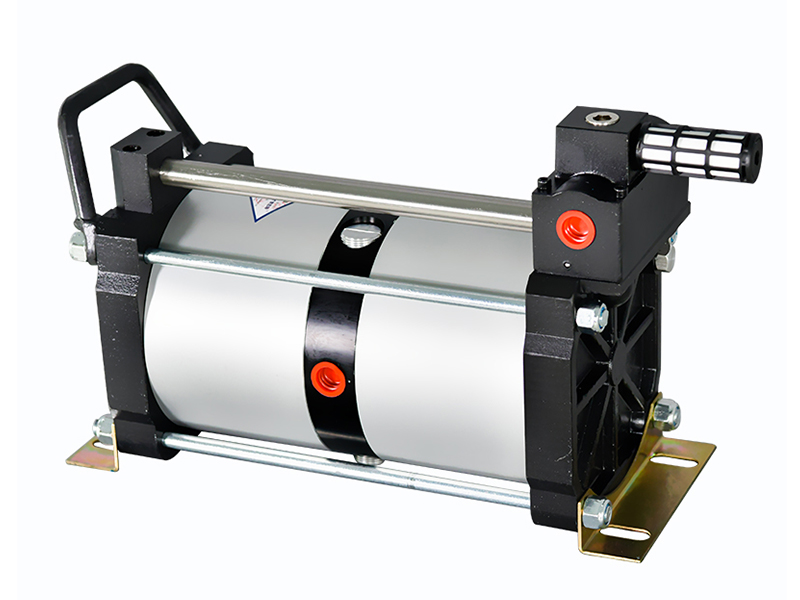

GPV series Air Amplifiers
Air Amplifiers Driven by compressed air, the gas can be pressurized up to 40Bar
There are two types of mpv booster pumps,(GPV02, GPV05)which can be selected according to demand.
WhatsApp
Email

Get In Touch

Product Description


Air booster pump


Air Amplifiers


SHINEEAST air amplifiers are available in 4 sizes: MPV02, MPV04, GPV02 and GPV05. The air Amplifiers are suitable for the compression of pressurized normal shop air and are provided with a variety of application ratios. The units are capable of pressurized to twice, four times, and max. five times of the normal shop air. Provide for operating pressure up to 40 bar and flow up to 1,350L/min.


Looking for a compact and portable way to increase gas pressures? Look no further than Shineeast Air Amplifiers Systems. With no need for electrical power, these systems offer a safe and economical way to boost air pressures.


a、Control of maximum pressure by means of inexpensive air drive pressure regulators

b、No heat, flame or spark risk

c、Infinitely variable outlet pressure and flow capability

d、Long seal life and easy maintenance

e、The price is cheaper, reducing the cost of business





Technical parameters of MPV02 Air Amplifiers:


TypeMPV02
Pressure ratio(i)2:1
Air drive pressure(bar)3-8bar
Air drive connectionPT3/8”
Air inlet connectionNPT3/8”
Air outlet connectionNPT3/8”



Technical parameters of MPV04 Air Amplifiers:


TypeMPV04
Pressure ratio(i)4:1
Air drive pressure(bar) 3-8
Air drive connectionG3/8”
Air inlet connectionNPT1/2”
Air outlet connectionNPT1/2”



Technical Parameters of GPV02 Air Amplifiers:


TypeGPV02
Pressure ratio(i)2:1
Air drive pressure(bar)1-8
Air drive connectionPT1/2”
Air inlet connectionNPT1/2”
Air outlet connectionNPT1/2”



Technical Parameters of GPV05 Air Amplifiers:


TypeGPV05
Pressure ratio(i)5:1
Air drive pressure(bar)3-8
Air drive connectionPT1/2”
Air inlet connectionNPT1/2”
Air outlet connectionNPT1/2”
Company Profile

Shandong Shineeast Fluid Control Systems Co., Ltd., founded in 2001, is a professional manufacturer of highly engineered fluid and gas handling equipment designed to generate, store and control high pressure gases and liquids.


In addition to offering a comprehensive range of air driven liquid pumps, air pressure boosters, air driven gas boosters, high pressure valves, fittings and accessories, pnematic power packs and hydraulic presses, pressure test machines, valve and pipe fittings test equipments, finishing pumps and related equipments, gas cylinder test equipments and the oil and gas field special controls and test equipments, we customize and build pneumatic power packs and test equipment. Our main manufacturing locations are fully registered to ISO9001 and CE.
