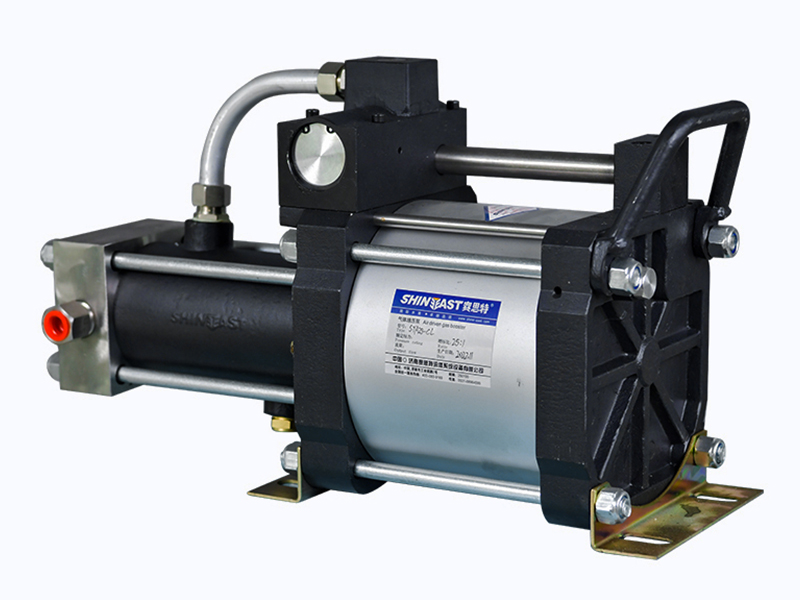

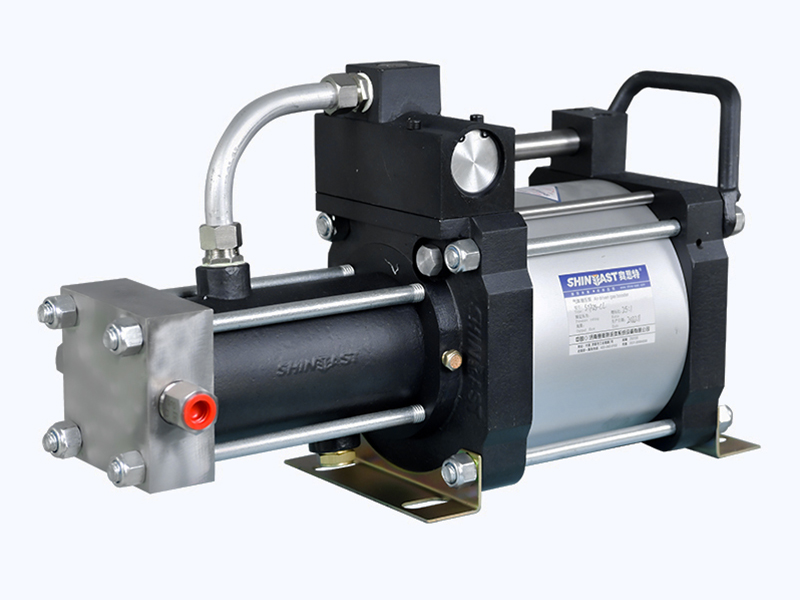

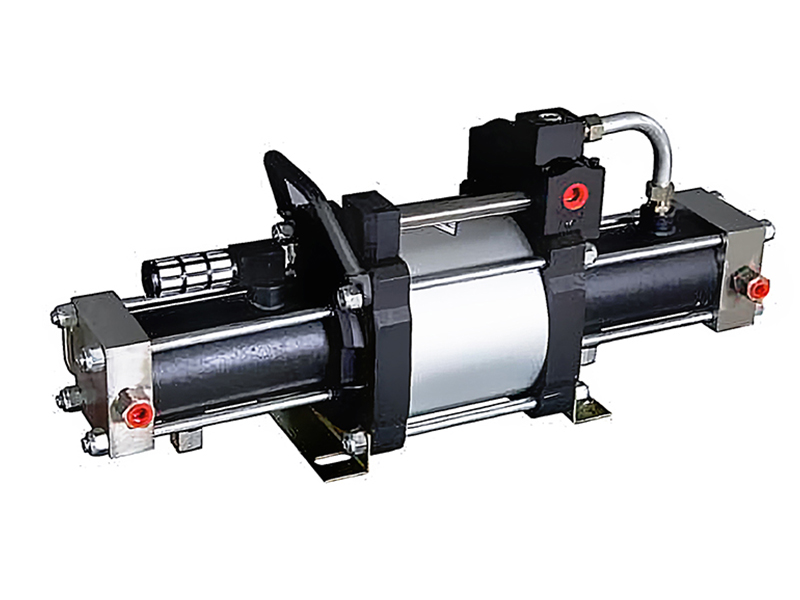

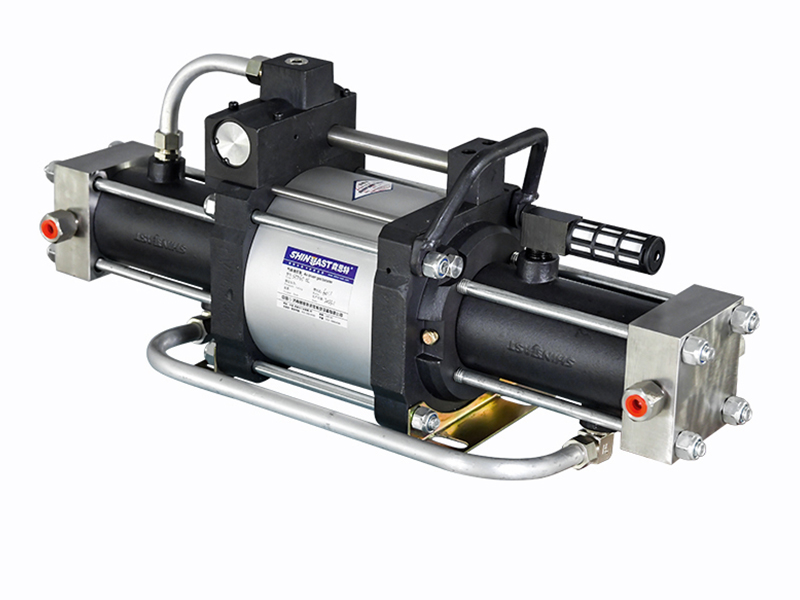

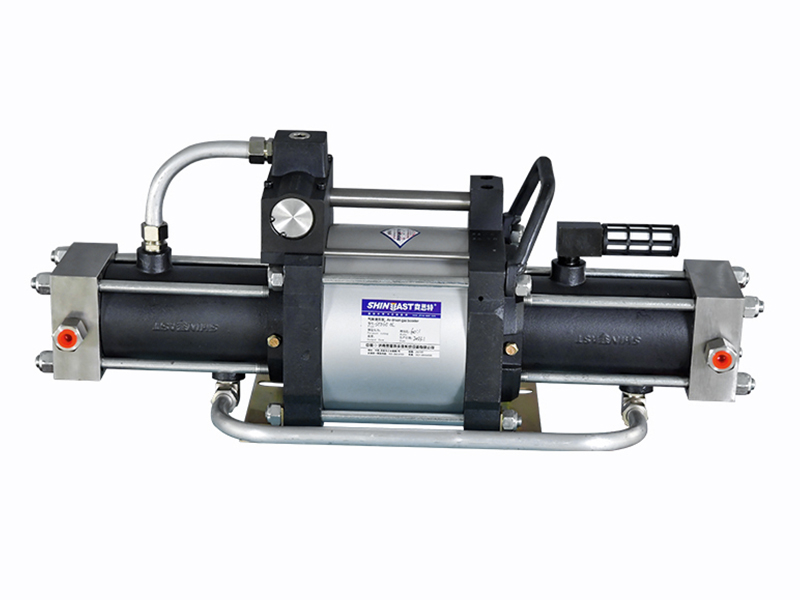

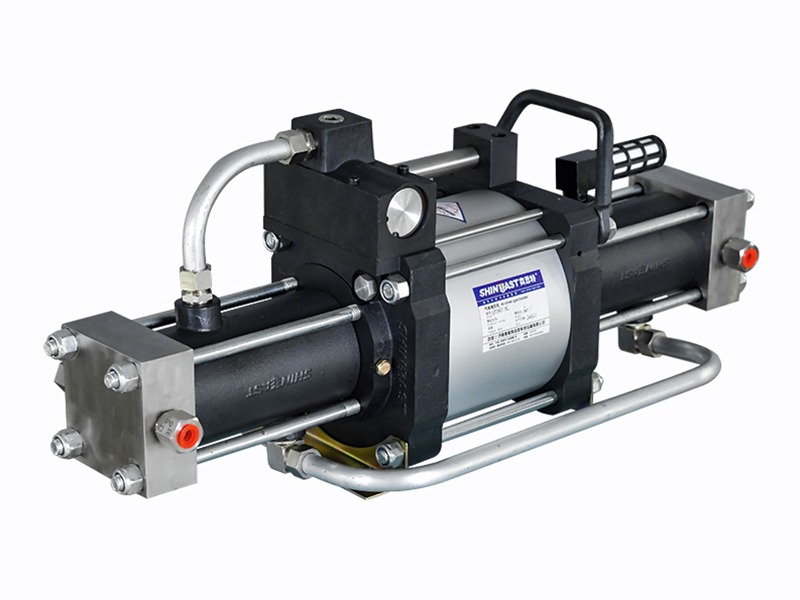

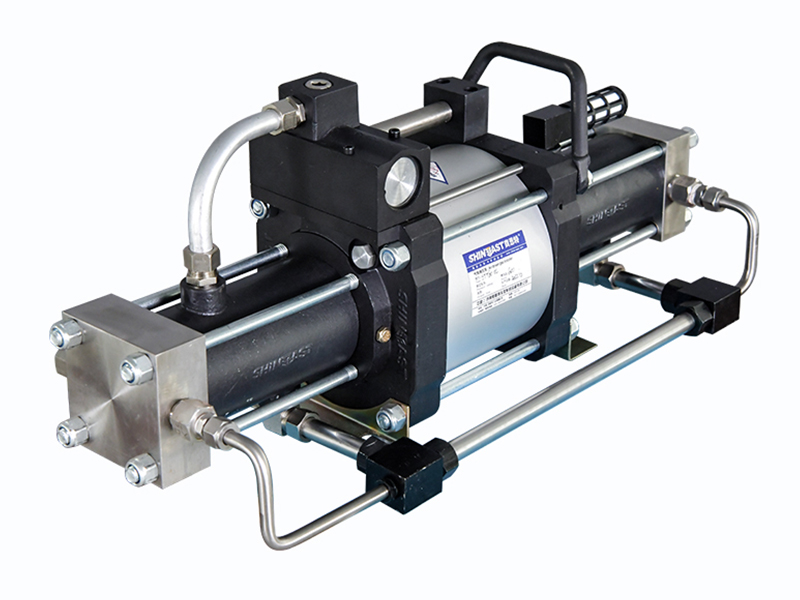

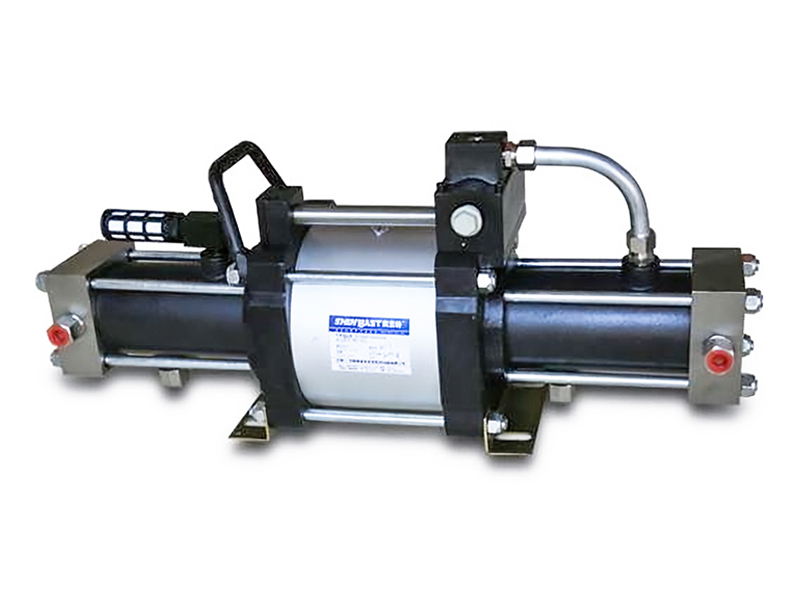

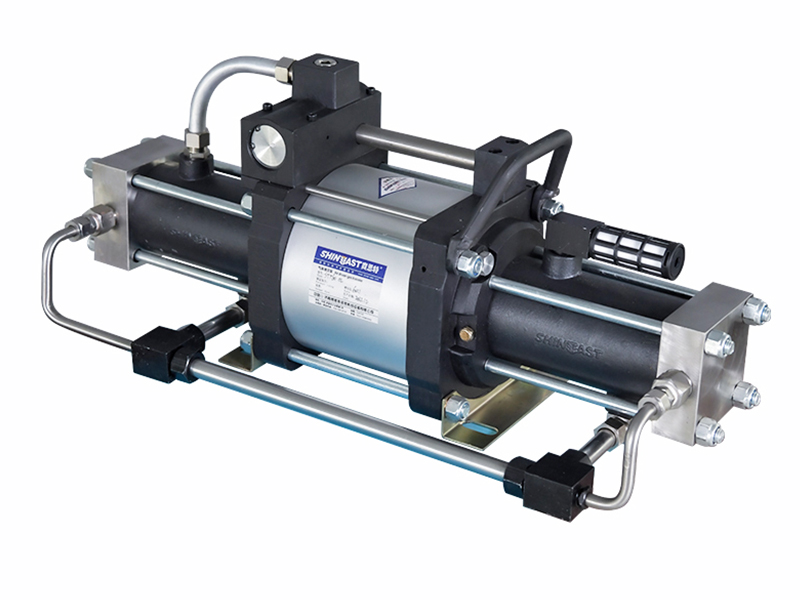

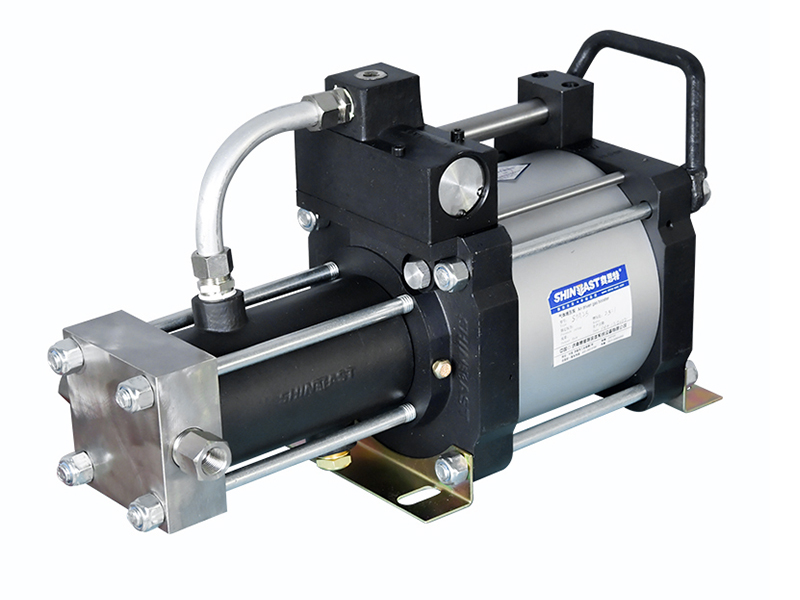

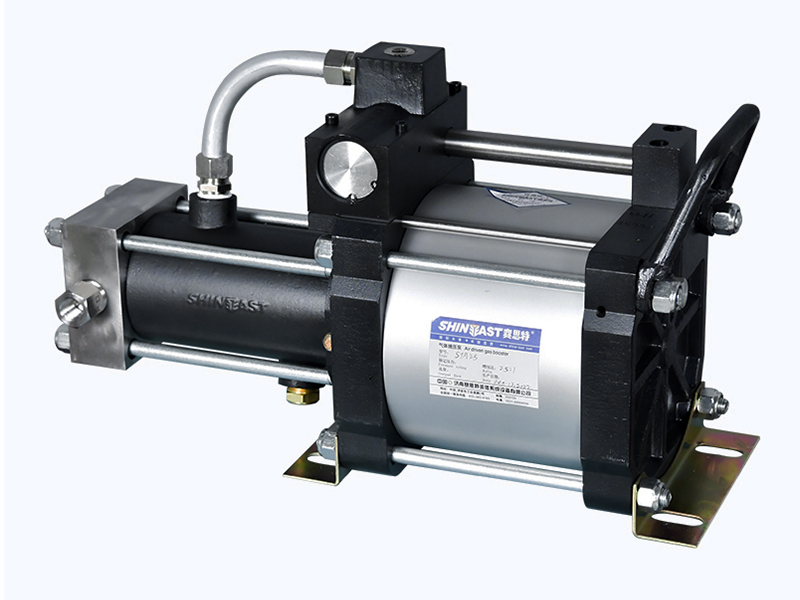

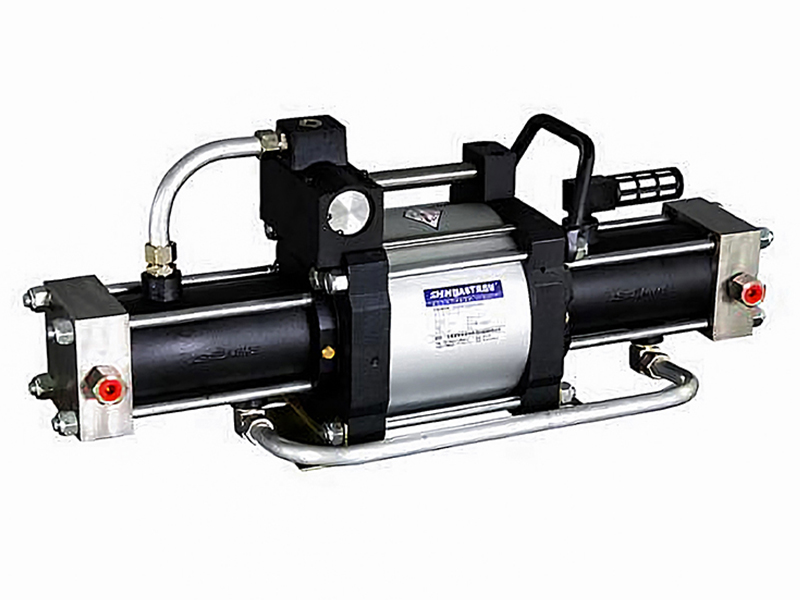

Hydrogen/Oxygen Boosters Pump
This type of gas booster pump uses different raw materials for different gas characteristics, suitable for oxygen, hydrogen, carbon dioxide and corrosive gases

Get In Touch

Product Description

STT series Gas Boosters are double acting, double stage models with single air drive head.  Gas inlet pressure is from 1 bar (14.5psi) to 10 bar (145 psi). Provide for pressures up to 80MPa.

Technical Parameters of STT Series Gas Boosters:

TypePressure
ratio
Min.   gas inlet pressure
PA(bar)
Max.   gas
Inlet
pressure
PA(bar)
Max.gas
outlet
pressure
PB(bar)
Formula   to
calculate   gas
outlet   pressure
PB
Connection:
Gas   Inlet /
Gas   outlet(NPT tread)
Max.   flow at air   drive pressure of 6 bar (L/min)
STT2525:10.11020025XPL+3.5XPA1/4/ 1/4136(at   PA of 8 bar )
STT4040:10.11032040XPL+   6XPA1/4/ 1/4124(at   PA of 8 bar )
STT10/6010:1/60:10.11048060XPL+6X   PA1/4/ 1/484(at   PA of 8 bar )
STT25/6025:1/60:1102548060XPL+2.5XPA1/4/ 1/480(at   PA of 15 bar )
STT100100:10.110800100XPL+10XPA3/8/ M14X1.563(at   PA of 8 bar )

Note:  PL: air drive pressure    PA: gas inlet pressure   PB: gas outlet pressure

Company Profile

Shandong Shineeast Fluid Control Systems Co., Ltd., founded in 2001, is a professional manufacturer of highly engineered fluid and gas handling equipment designed to generate, store and control high pressure gases and liquids.


In addition to offering a comprehensive range of air driven liquid pumps, air pressure boosters, air driven gas boosters, high pressure valves, fittings and accessories, pnematic power packs and hydraulic presses, pressure test machines, valve and pipe fittings test equipments, finishing pumps and related equipments, gas cylinder test equipments and the oil and gas field special controls and test equipments, we customize and build pneumatic power packs and test equipment. Our main manufacturing locations are fully registered to ISO9001 and CE.
